The ZB Series supports a wide range of application scenarios from low-temperature freezing to medium-temperature refrigeration, capable of adapting to different temperature requirements and suitable for a wide range of uses, such as food storage, display cabinets, cold storages.supermarket freezers, convenience stores, restaurants, etc.
Case Details
Product Features of Copeland Scroll ZB Series Compressors 1.Energy efficiency:The ZB Series incorporates advanced scroll technology that provides an excellent energy efficiency ratio (EER), helping to reduce energy consumption and operating costs.
2.High reliability:The design reduces the number of moving parts, lowering the risk of wear and failure. Its unique scroll structure provides better resistance to liquid strikes and impurity tolerance.
3.Built-in protection mechanism:The ZB Series is equipped with motor overheat protection and other safety features to ensure stable operation even under abnormal conditions, reducing maintenance needs and downtime.
4.Low noise operation:The use of scroll technology makes the compressor operate more quietly, making it suitable for noise-sensitive environments such as supermarkets and convenience stores.
5.Environmental friendliness:The ZB Series supports a wide range of environmentally friendly refrigerants such as R404A, R134a, R407C, etc., which meets current and future environmental standards.
6.Flexibility:The ZB Series provides a variety of model options to suit different capacities and application requirements, and supports different voltage configurations, enhancing the flexibility of use.

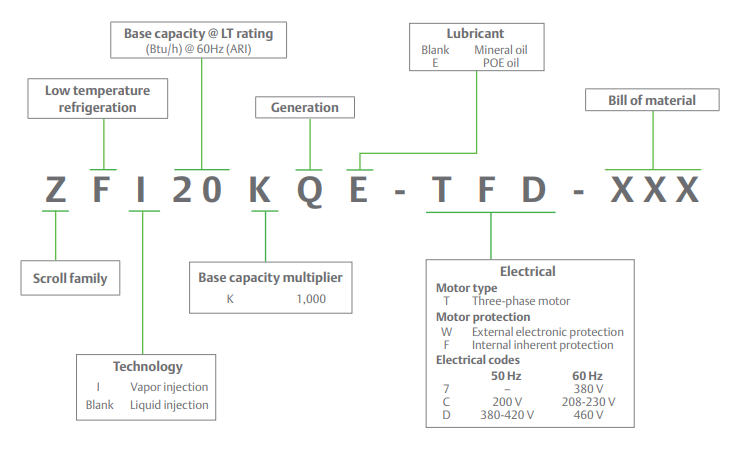

Product model naming rules as shown in the figure：
Example 1

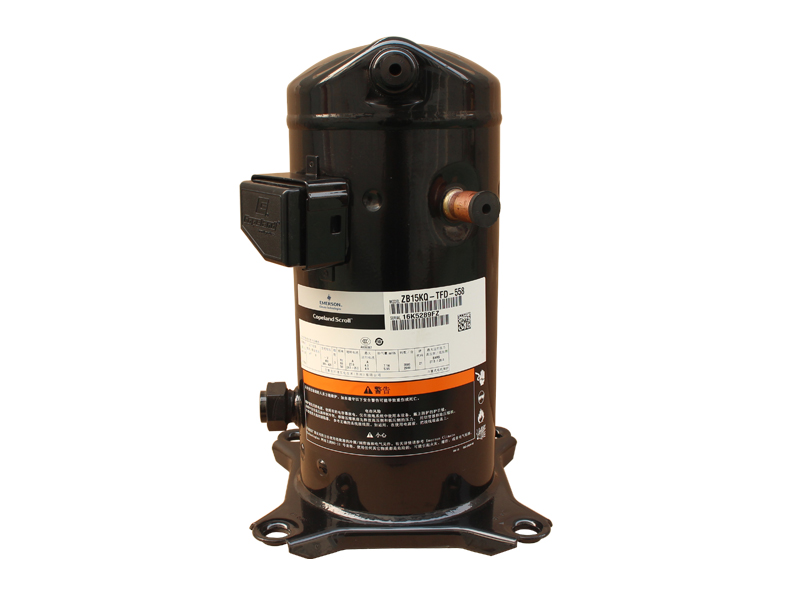

ZB15KQ-TFD-558(B: Refrigerated medium/high temperature applications):
Voltage:380/42
Refrigerant: R404A/R507/R448A/R449A/R465A
Excellent low-temperature performance and high energy efficiency, attractive appearance, outdoor installation to save space compact system design.
Example 2

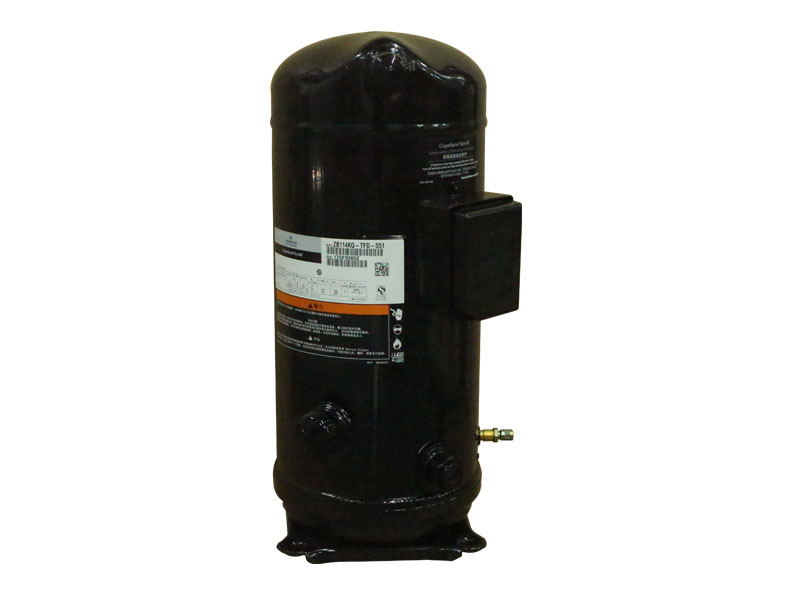

ZB114KQ-TFD-551(B: Refrigerated medium/high temperature applications):
Applications:High Temperature/Medium Temperature
Compatible Refrigerant:R22
Displacement[m/h]-50Hz:50Hz=43.3
Displacement [m/h]-60Hz:52.3
Frequency [Hz]50/60
Input Voltage Range:380/420V-3Ph-50Hz/460V-3Ph-60Hz
Modulation:Fixed Speed
Phase:3
Voltage:460
Proven reliability, superior liquid handling, digital modulation from 10-100%, compact, lightweight and durable.
