The Copeland Scroll ZF series compressor is a high-performance, highly reliable scroll compressor for a wide range from commercial refrigeration such as supermarket, convenience store and restaurant kitchen to industrial refrigeration such as food processing plants, pharmaceutical industry and chemical industry to cold chain logistics refrigeration such as reefer trucks and containers and reefer trucks and containers to air conditioning systems.
Case Details
As one of the world's leading compressor brands, Copeland compressors enjoy a high level of attention in the market. The following are the main features of ZF series compressors:1.Stable and reliable:The ZF series compressors have a stable operating performance and are designed for continuous operation over long periods of time, with a design life of up to 15 years.
2.Compressor protection:The ZF series compressors are equipped with high and low pressure protection, pressure relief valve, motor overload protection and other devices to ensure the safe operation of the compressors.
3.A variety of refrigerants can be selected:A variety of refrigerants can be selected, such as R22, R134A, R407C, R404A, etc., to meet different application scenarios.
4.Strong ability to withstand liquid shock:Flexible scroll design makes the compressor with strong liquid shock capacity and improves the durability of the equipment.
5.Liquid injection technology and gas injection technology:Liquid injection technology is adopted to control the exhaust gas temperature and extend the operating range of the compressor; gas injection technology and subcooler are adopted to improve the refrigeration capacity and efficiency of the system.
6.Smooth operation:There is no reciprocating mechanism inside the compressor, so the torque change is small, the balance is high, the vibration is small, and the operation is smooth.

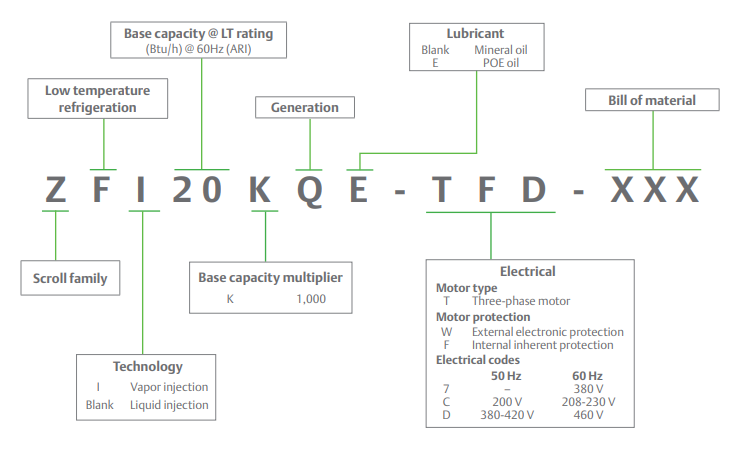

Product model naming rules as shown in the figure：

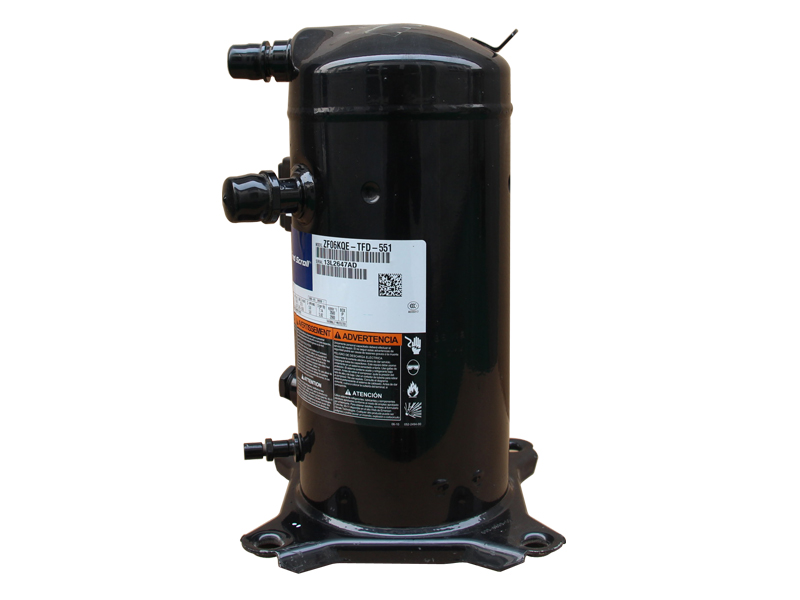

Example 1ZF06KQE-TFD-551：
Compatible Refrigerants:R22/R404A/R407A/R407C/R407F/R507
Displacement[m/h]-50Hz:5.9
Displacement [m/h]-60Hz:7.14
Input Voltage Range:380/420V-3Ph, 460V-3Ph
Voltage:460V
The compressor is equipped with a dynamic exhaust valve, which can adjust the compressor exhaust pressure according to requirements to prevent the recompression of the gas inside the compressor, and greatly improve energy efficiency at high compressor pressure ratios.

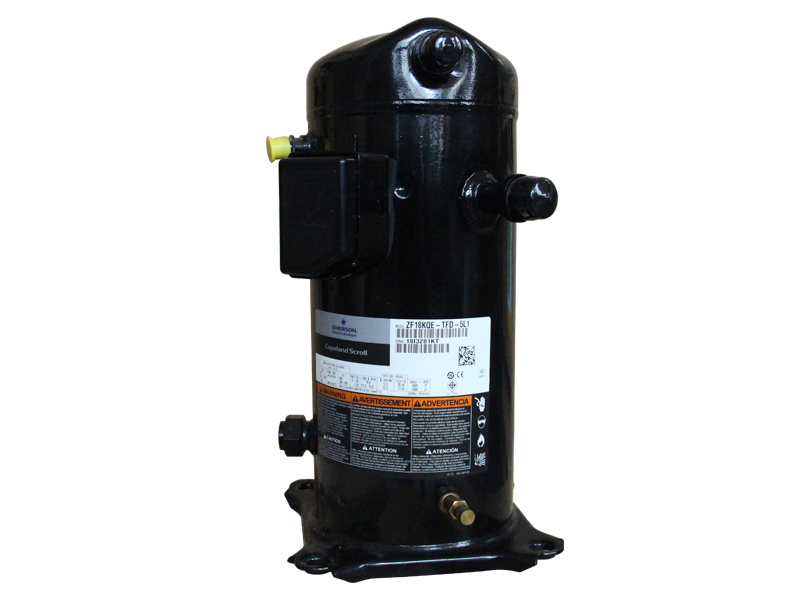

Example 2ZF18KQE-TFD-5L1:
Cooling System:Air Cooling
Cylinder Position:Vertical
Compress Level:Single-Stage
Performance:Low Noise
Configuration:Stationary
Input Voltage Range:200V-1pH, 208/230V-1pH, 208/230V -3pH, 200/220V-3p
Refrigerant:R22/R404A/R134A/R407/R407c/R407F
The compressor can be operated at condensing temperatures as low as 4.4°C, providing high seasonal energy efficiency.Enhanced Enthalpy Injection (EEI) technology gives the compressor a higher efficiency ratio than a single stage compressor at low temperatures, resulting in excellent performance.
In summary, Copeland Scroll ZF Series Compressors are a popular choice in the refrigeration and air-conditioning industry due to the high performance, reliability and ability to adapt to a wide range of application scenarios.
