Copeland ZR Series Compressors

Copeland ZR series compressors have the following advantages：

1.Ultra-high energy efficiency: Energy efficiency than the most advanced piston compressor on the market today is 12% higher.

2.Outstanding reliability: Few moving parts, axial and radial Copeland patented flexible design provides unprecedented resistance to liquid shock and tolerance of impurities.

3.Built-in motor and short circuit protection device can effectively protect the motor from high temperatures and high current damage.

4.Low noise / low exhaust impulse: The noise level than the piston compressor is lower than more than 5 dB.

5.Simple system design: Its unique unloaded start design simplifies system design by eliminating the need for a start capacitor/relay, reducing installation and maintenance complexity

6.High volumetric efficiency: The ZR series compressor has a volumetric efficiency of nearly 100 percent, delivering extra-long heating capacity

7.Wide range of applications:The power range of ZR series compressor is from 1.5HP to 15HP, which is suitable for a wide range of application scenarios and is still expanding.

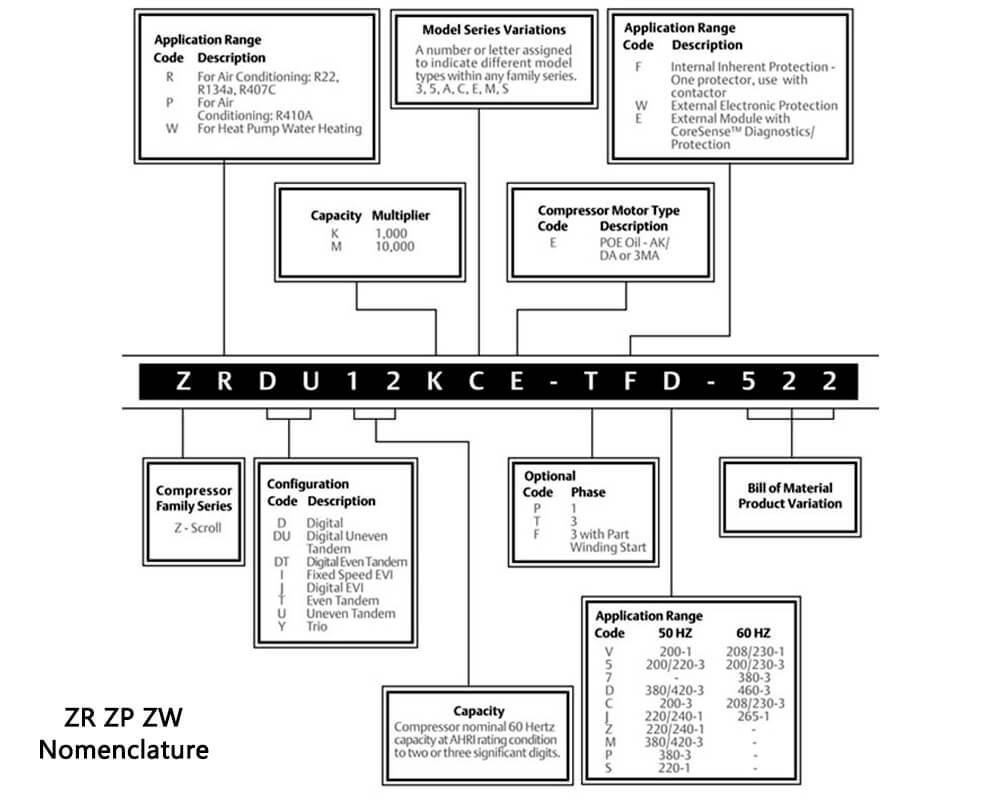

Product model naming rules as shown in the figure：
Example 1

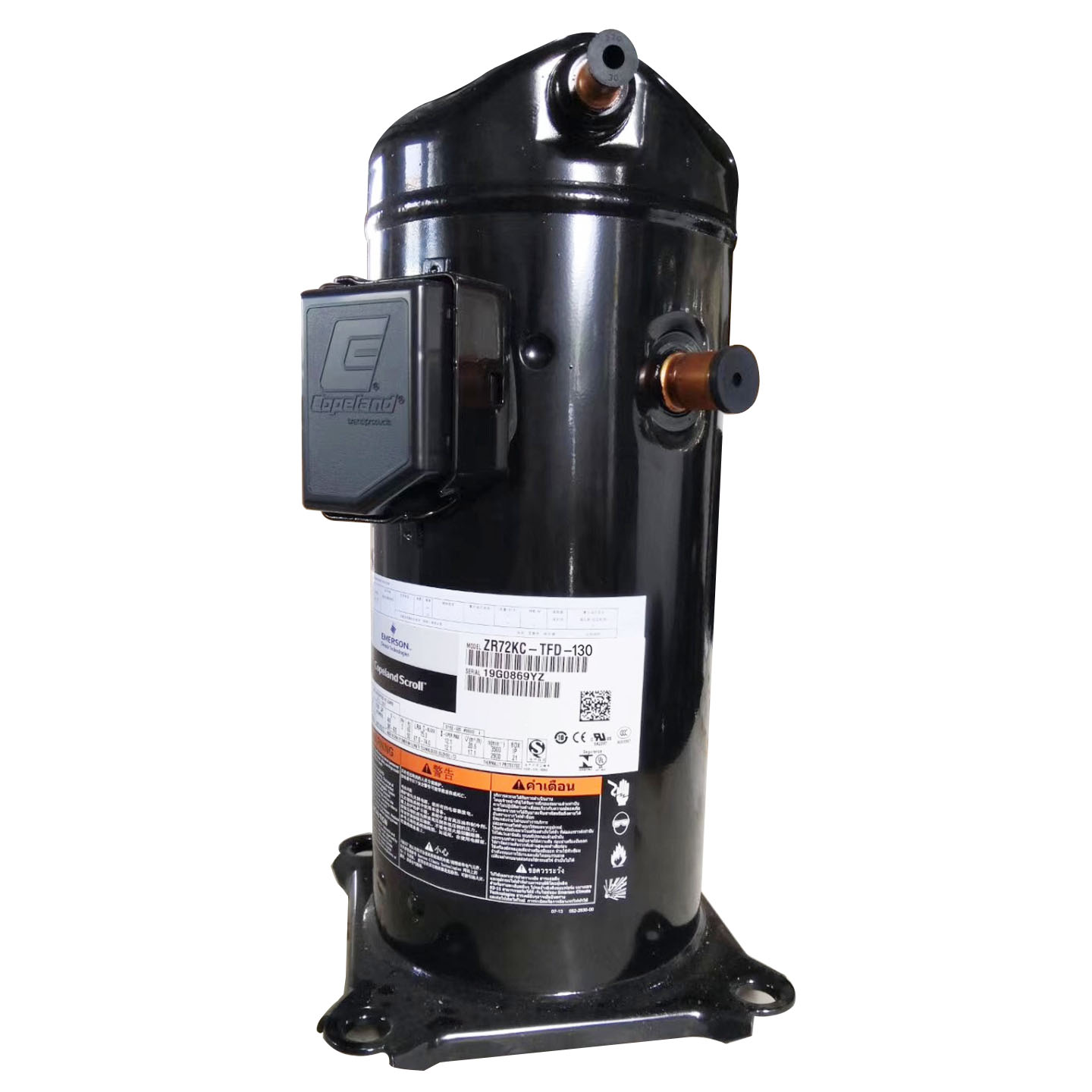

ZR72KC-TFD-130:
Refrigerant:R22/R404A/R407c/R410
Capacity:17400W
Voltage: 380-420V-460V
Frequency:50 – 60Hz
Power Input:5.25
Horse Power:6HP
Cooling Capacity:17400 W
Application:Air Conditioning

The noise level than the piston compressor is lower than more than 5 dB.
Example 2

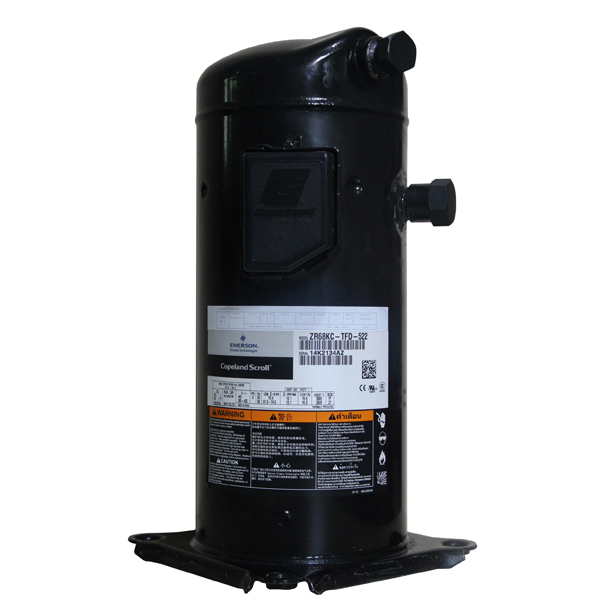

ZR68KC-TFD-522:
Cooling capacity (BTU/H):57.500
Horsepower (HP):5,67
Rated Load Amps (RLA):10,0
Locked Rotor Amps (LRA):74,0
Refrigerant:R22
Electrical power:380-420V/3P/50Hz

Its unique unloaded start design simplifies system design by eliminating the need for a start capacitor/relay, reducing installation and maintenance complexity.
