Johnson Controls-Hitachi Wanbao Compressor (Guangzhou) Co，Ltd. has abroad compressor portfolio that are used for commercial and residential air-conditioning transportation, heat pump and refrigeration applications. Our main domestic customers are well-renowned air conditioning manufacturers such as Midea.Gree Hisense, Haier and Chigo, as well as other countries across Asia, North and South America, Europe and Middle East & Africa.
The company, relying on Hitachi Brand and its advanced technologies. has had a rapid annual production and sales volume prowth since its establishment. It has nrovided customized solutions and helned our customers win everywhere every day.
• Advanced Gas Injection
• Improved Asymmetric Wrap
• Non-contact Oil Film Seal
• Concentrated Motor
• High Speed Performance
• Dynami Oil Balance
• Oil Filter
• Positive Displacement Gear Pump
• Internal Oil Circulation
• High Side Pressure Design
• Highly Reliable Bearings
• Intermediate Gas Pressure
• Release Valve
|

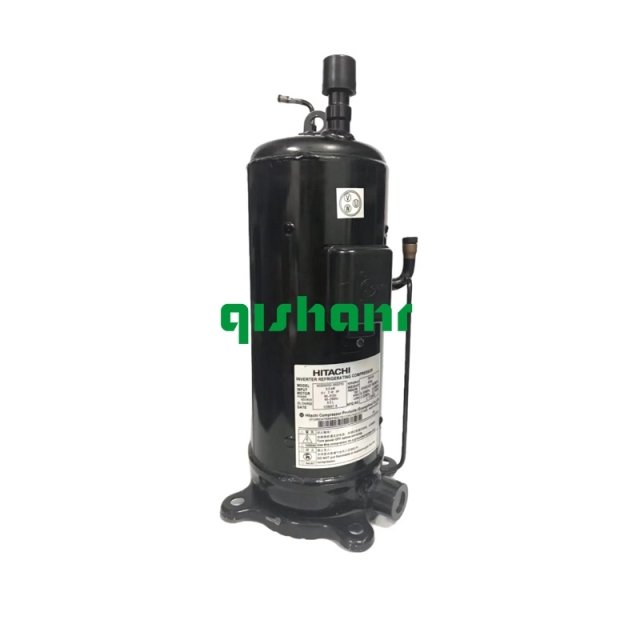

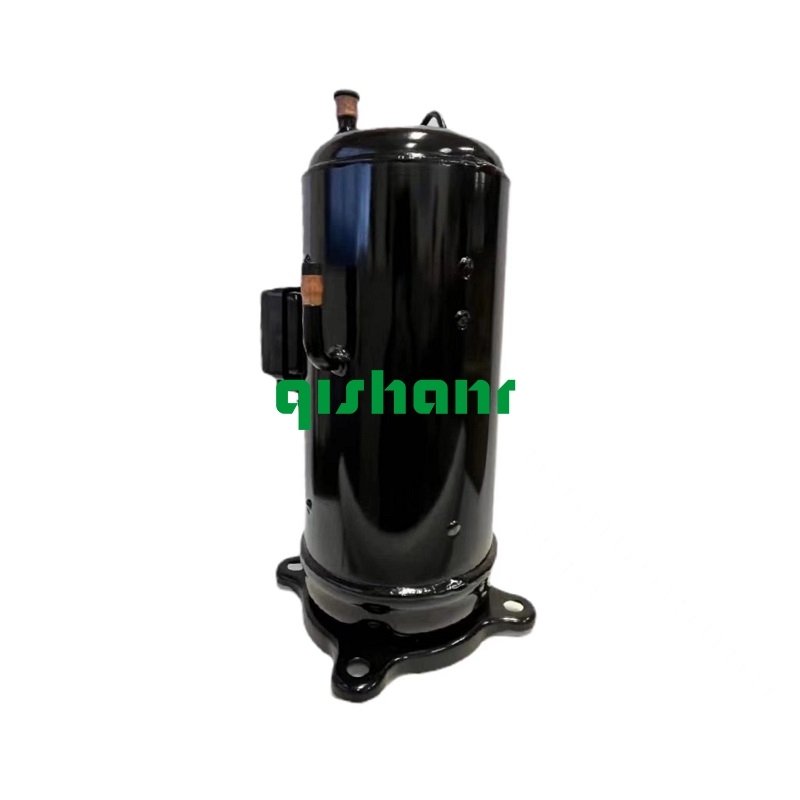

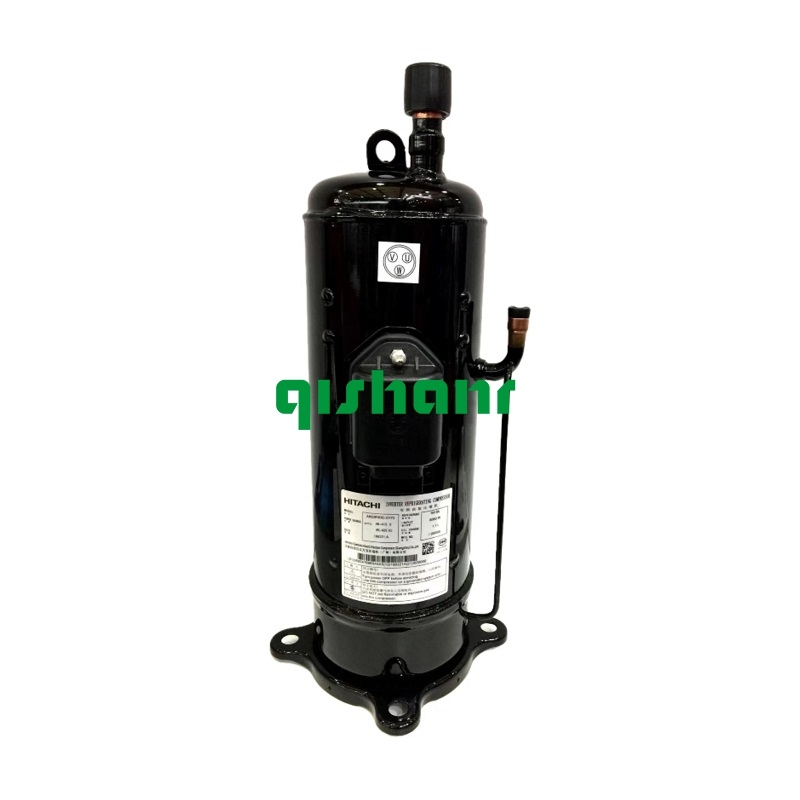

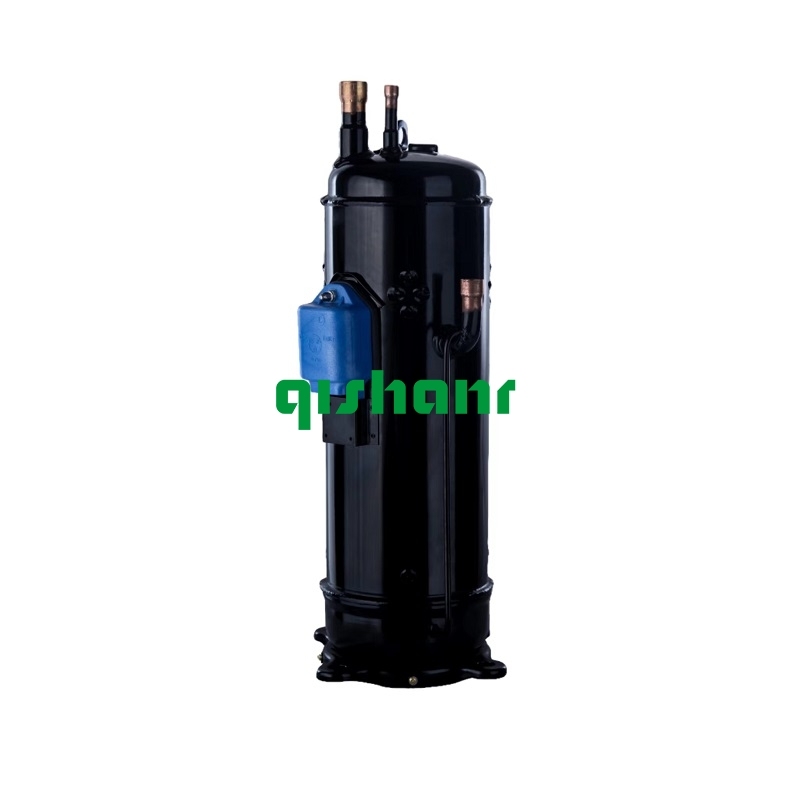

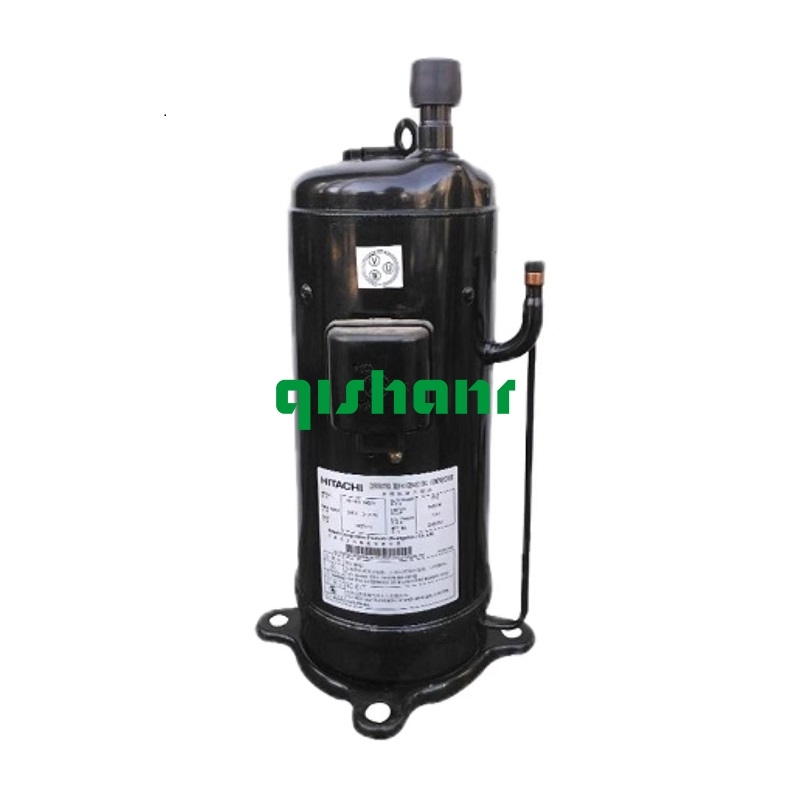

Model |
403DH-64D2 |
|
|
Refrigerant |
R22 |
|
| Voltage | 380-415V,50Hz ; 440V,60Hz | |
| Displacement (cm³/rev) | 64 | |
|
Capacity |
BTU/h |
40240 |
| W | 11800 | |
| Power (W) | 3600 | |
| Current (A) | 6.3 | |
| EER/COP | BTU/W·h | 11.1 |
| W/W | 3.25 | |
| Sound Level dB (A) | 60 | |
| Oil Charge (L) | 1.2 | |
| Weight (kg) | 34 | |
|
Application |
AC |
|
