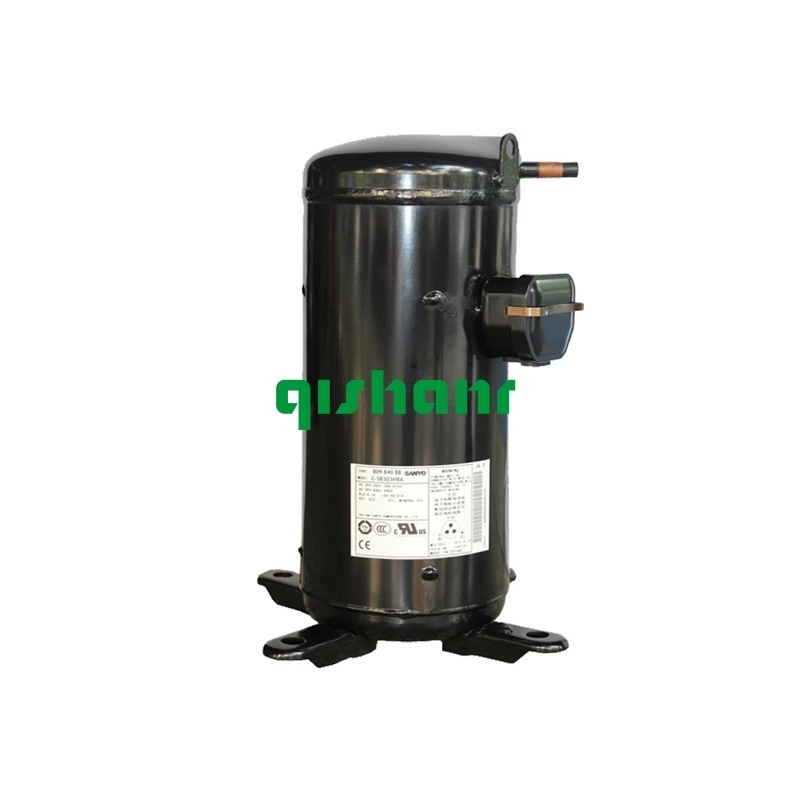

Dalian-Panasonic C-SB Series Scroll Compressor C-SBP160H38A

Item No.: C-SBP160H38A
Refrigerant: R410A
Output (HP): 4.6
Voltage: 380-415V,50Hz ; 440-460V,60Hz
Phase: 3
Application: Air Conditioning
Description

Product Description

Panasonic Appliances Compressor(Dalian) Co.,Ltd.:

• Certificate of " Advanced Technology in October 1997.
• ISO 9002 Quality Management System in November 1997.
• ISO 14001 international environment management system certificate in March 1998. * Certificate of “High-Tech Enterprise" in September 1998.
• “AAA" level reputation certificate in October 1998.
• Certificate of Conformity for Electrical Equipment in March 1999(CCEE) “TUV" product certificate in May 2000.
• And was conferred with the honor of Dalian Advanced Technology Corporation.
• Besidesseveral national compressor standards were drawn out by us. thus
• We win high prize in compressor industry both domestically and abroad
• Certificatefor China Compulsory Product Certification in September 2002 (CCC)
• ISO 9001 Quality Management Svstem (2000) in October 2002.
• Approval of Japanese “Intensity Test Certificate" in Auqust 2003(No.15 ntensity 23)
• “UL" product certificate in October 2003
• “VDE" product certificate in June 2004.
• “CE" product certificate in October 2004.
• OHSAS18001:1999 Certificate in September 2005.
• “CRAA” product certificate in August 2006.
• “TIS" product certificate in December 2007.
• Korean "KC" product certificate in December 2009.
• “CB" product certificate in March 2011.
• “INMETRO" Product Certificate In September 2013.

Product Features

• Low sound and high adaptability to the ambient temperature.
• Less space occupation in saving place and energy
• Simple installation with full-provided accessories before factory shipment.
• Refrigerant R22、R404A、R407C、R410A、R134a.

Product Specification

Model

C-SBP160H38A

Refrigerant

R410A

Voltage

380-415V,50Hz ; 440-460V,60Hz

Out Put (HP)

4.6

Displacement (cm³/rev)

51.8
50Hz Capacity kW 13.2
kBTU/h 45.1
COP W/W 2.87
BTU/Wh 9.8

60Hz

Capacity

kW

16.2

kBTU/h

55.3

COP

W/W

2.98

BTU/Wh

10.2

Application

Air Conditioning
