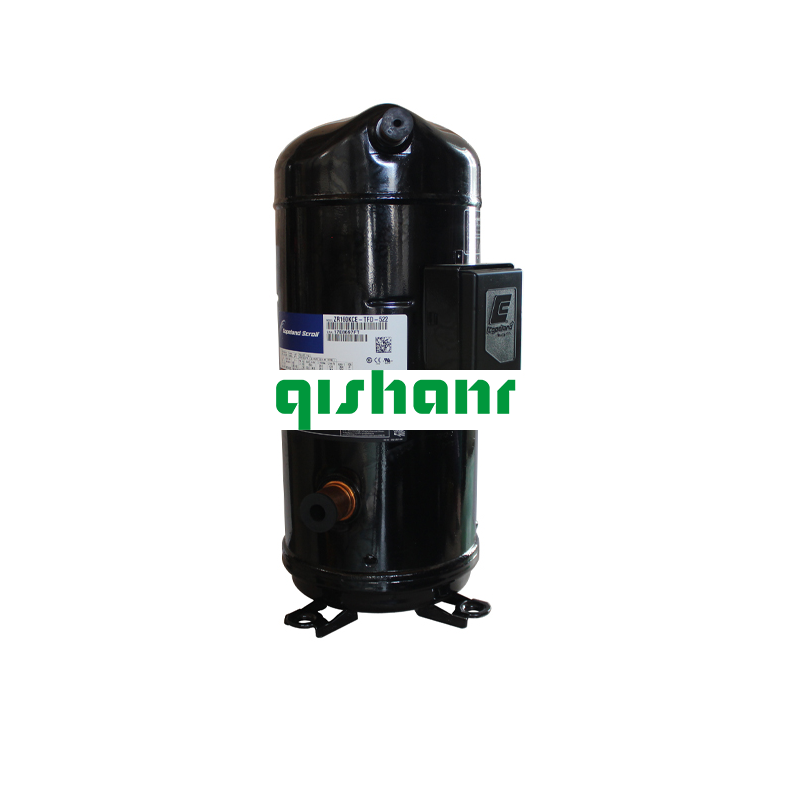

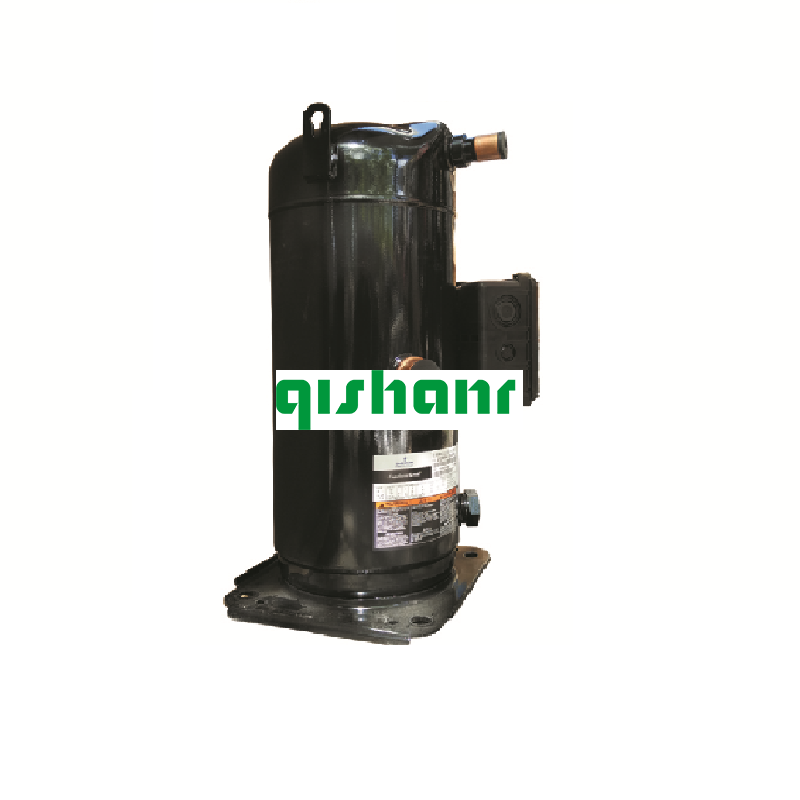

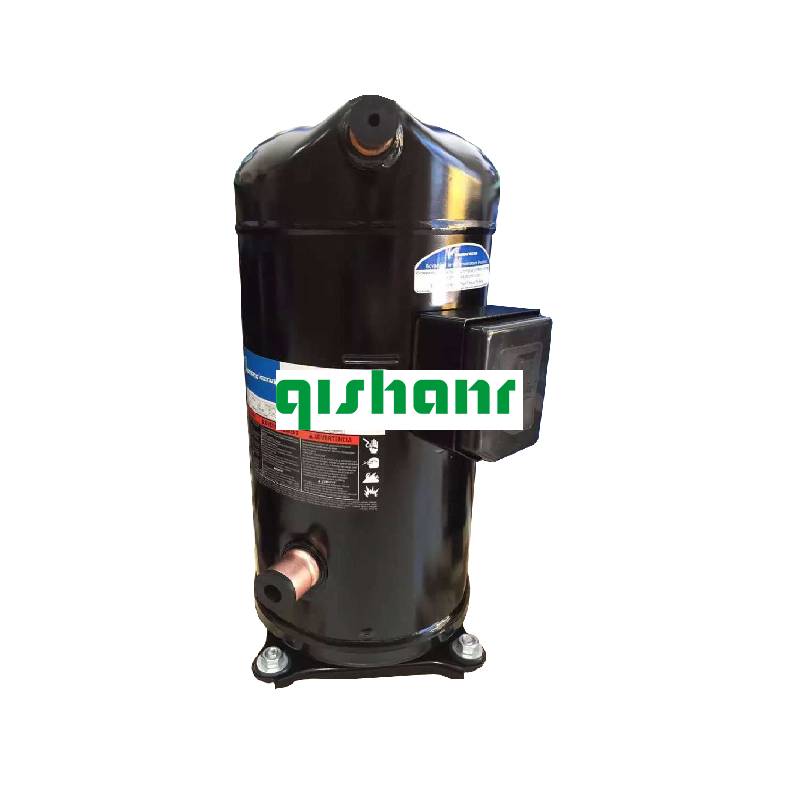

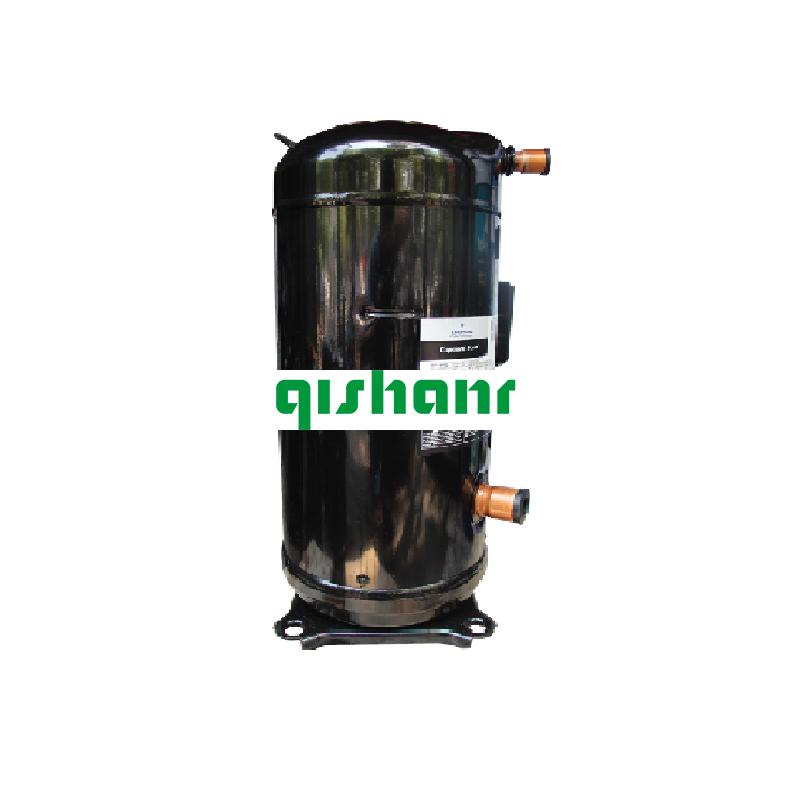

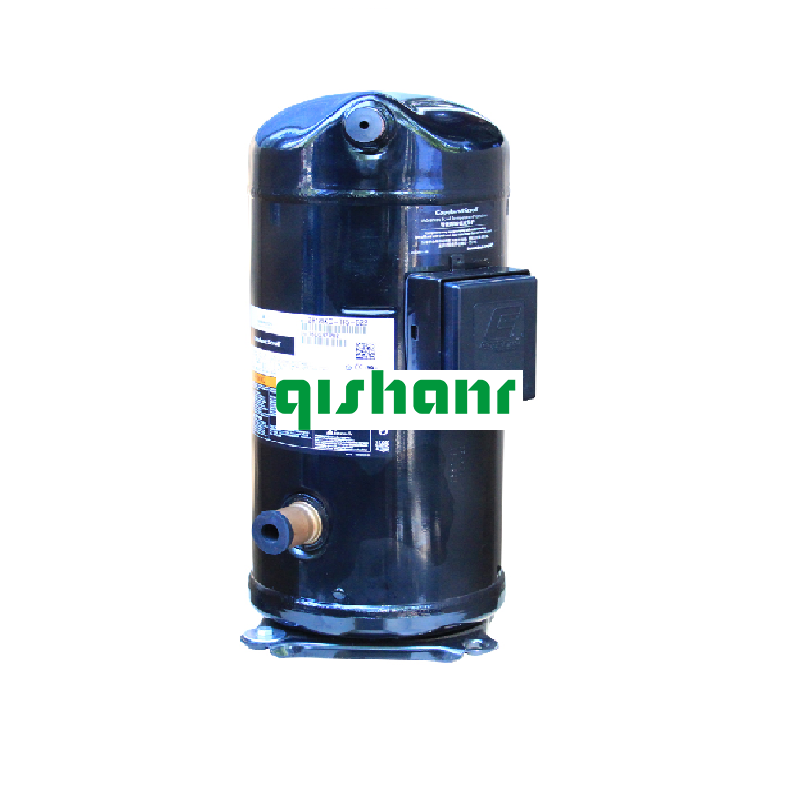

R407C Copeland Scroll Compressor ZR125KCE-TFD-950

Item No.: ZR125KCE-TFD-950
Refrigeration Type : R407C
Cooling Efficiency (EER) : 11.7
Capacity Range (BTU) : 128,000
Voltage : 460V / 200-230V / 380V ; 60 Hz
Phase : 3
Application : Airconditioning
Description

Product Description

Copeland brand compressors is engineered for higher efficiency, lower sound levels, superior durability and unsurpassed reliability. They allow the integration of new and environmentally-friendly refrigerants into your systems, while seamlessly improving efficiency and performance levels.
Copeland Scroll compressors are designed to deliver the highest performance in residential and commercial applications. Thanks to the widest selection of scroll compressors optimized for air conditioning and heating, it has never been easier to match all desired applications with the highest efficiency and reliability.

Product Features

• Highest efficiency:
Highest level of efficiency available on the market, whatever the refrigerant and operating condition
 Large operating envelope:
Large operating envelope that allows medium and low temperature applications to be covered by one single model with condensing limit as low as 5°C
• Multi-refrigerant:
Multi-refrigerant compressor range – one model to cover all standard refrigerants
 Smooth operation:

Option to use 2 and 3 cylinder models with additional Demand Cooling function in order to achieve extended low temperature operating envelope without any superheat restriction.

Product Specification

Model

ZR125KCE-TFD-950

Nominal (HP)

10.4

Refrigeration Type

R407C

Capacity

(W)

37500

(Btu/h)

128000

Voltage

460V / 200-230V / 380V ; 60 Hz

Input Power (W)

10900

Current (A)

16.3

COP (W/W)

3.43

EER (Btu/Wh)

11.7

Displacement (cc/ Rev.)

167.2

Oil Quantity (l)

3.25

Net Weight (Kg)

61.2

LRA (A)

125

Sound Pressure @1m (dBA)

69.0

Application

Air Conditioning
