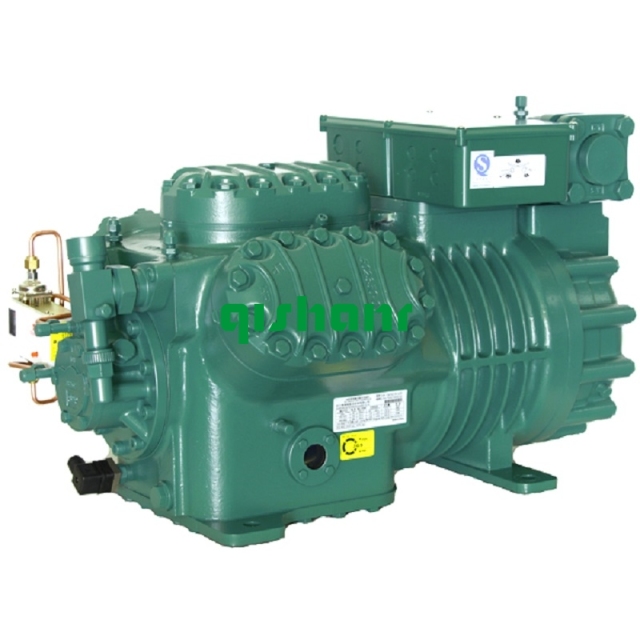

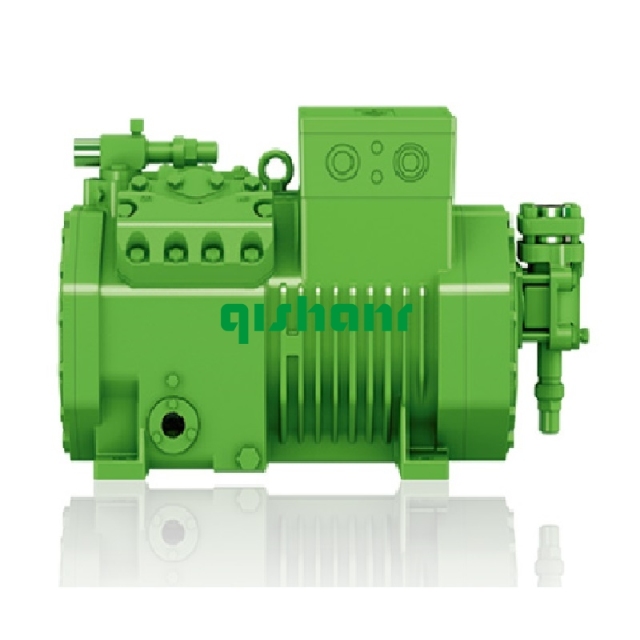

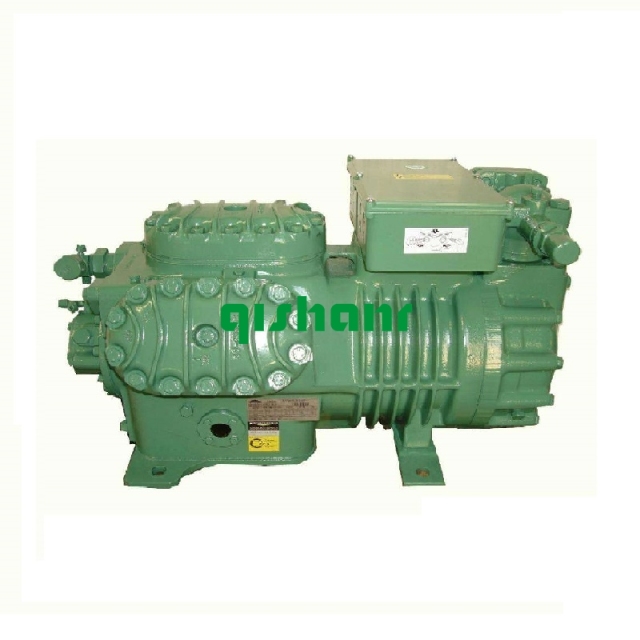

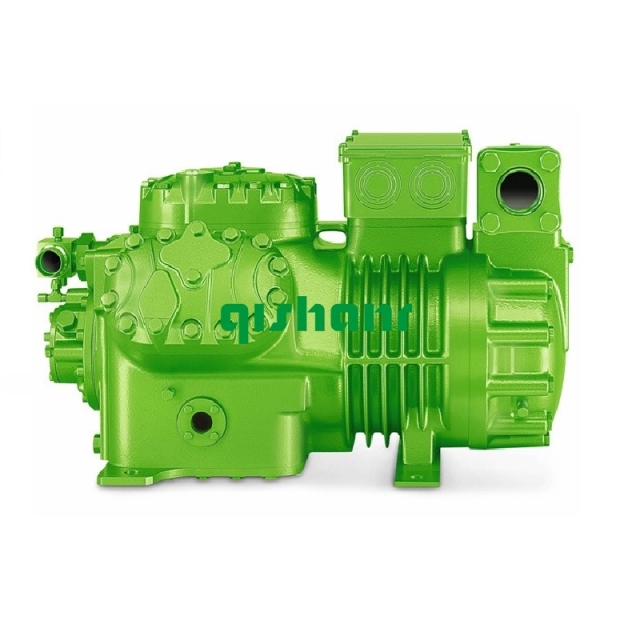

BITZER has always paid special attention to the efficiency of compressors and a few years ago introduced the BITZER ECOLINE series, which has been optimized especially for R134A. R134A offers very favorable characteristics especially for medium temperature and heat pump applications. This includes the extra high efficiency, moderate pressure levels (reduced leakafe retes) and the lowest GWP value of all non-flammable HFC refrigerants. This gives the BITZER ECOLINE compressor, which can also be used at very low condensing temperature, a beneficial seasonal energy efficiency beyond compressor.
• Extended application range
• Energy efficient
• Wear resistant drive gear
• Quiet with low vibration
• Minimun space requirement
• Efficient capacity control
|
Model |
8GE-60Y |
|
Refrigerant |
R134A, R407A |
|
Motor Connection |
380-420V/3/50Hz ; 440-480V/3/60Hz |
|
Displacement (m³/h) |
185 |
| Oil Charge (dm³) | 5.0 |
| Weight (kg) | 350 |
|
Application |
AC |
