With the extended ES series BITZER now provides the innovative scroll technology for applications in airconditioning systems and heat pums. The compressor are characterised by innvative technical features and extremely high energy efficiency.
The program consists of models with a rated motor power from 7.5 to 15 HP for the refrigerants R134A, R404A, R507A and R22.
• Spirals of equal temperature level achieved by a special cooling process (patented)-thereby
• High capacity and efficiency
• Simple and robust design
• Suction gas cooled motor
• Low sound and vibration levels
• Small space requirement,low weight and easy installation
• Fully hermetic due to welded shell
• Terminal box enclosure class IP54
|
Model |

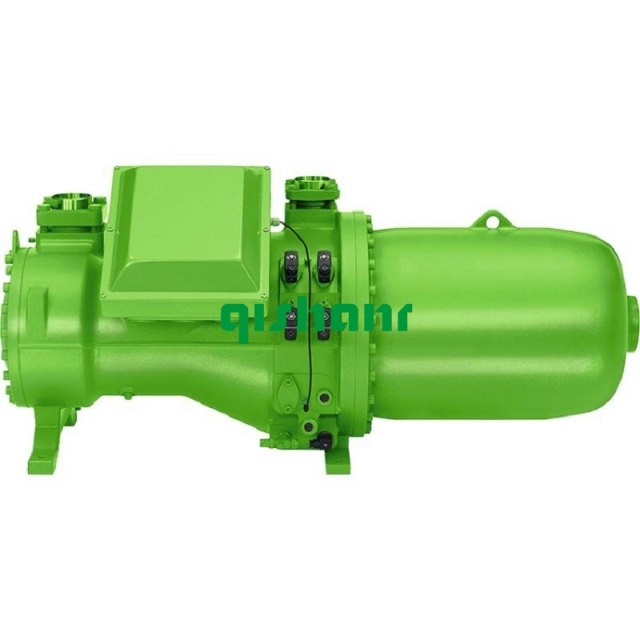

CSH9563-160Y |
|
Refrigerant |
R134A,R407C |
|
Motor Connection |
400V/3/50Hz ; 460V/3/60Hz |
|
Displacement 50/60Hz (m³/h) |
615/742 |
|
Oil charge (dm³） |
30 |
|
Application |
AC |
