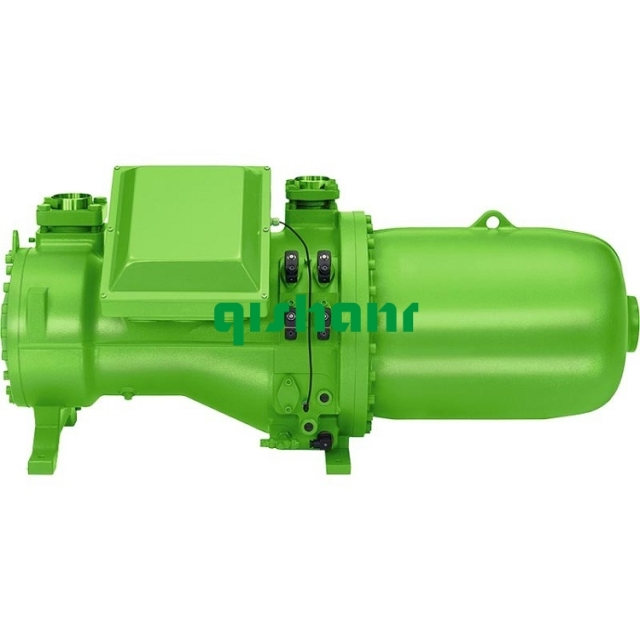

Bitzer Semi-hermetic Compact Screw Compressor CSH76 – CSH96 SERIES

The CSH.6 compact screw compressor series is especially designed for use in chillers with improved seasonal efficiency. It enables OEM system manufacturers to produce A/C & process chillers that fulfill highest international chiller efficiency standards by means of mechanical capacity regulation or operation with external frequency inverter.
The integrated oil separator and build-in suction gas cooled motor simplify the system integration and enable a compact and cost-effective system design.

Refrigerants

• R134a, non flammable, A1
• R513A, R450A, non flammable, A1
• R1234ze(E), R1234yf, flammable, A2L

Product range

• 12 models from 258 to 1120 m³/h @ 50 Hz

Certifications

• CE
• EAC
• UL
• DNV GL

Applications

• A/C chillers
  • w/ and w/o heat recovery
• Reversible A/C chillers for cooling and heating
• Process chillers for HT / MT / LT application
  • w/ and w/o heat recovery

Industry sectors

• Building equipment industry
• Automotive & mechanical engineering industry
• Food & beverages industry
• Injection molding industry
• Chemical & pharmaceutical industry
• Marine & offshore industry
• many more…

  No.	CSH76 – CSH96 SERIES
  1	CSH7673-70(Y)  258 *
  2	CSH7683-80(Y)  295 *
  3	CSH7693-90(Y)  336 *
  4	CSH8673-110(Y)  410 *
  5	CSH8683-125(Y)  470 *
  6	CSH8693-140(Y)  535 *
  7	CSH9663-160(Y)  615 *
  8	CSH9673-180(Y)  700 *
  9	CSH9683-210(Y)  805 *
  10	CSH9693-240(Y)  910 *
  11	CSH96103-280(Y)  1015 *
  12	CSH96113-320(Y)  1120 *
  *Displacement in m³/h at 50 Hz
