GMCC is a professional compressor manufacturer established by a joint venture between Midea Electric (China) and Toshiba Carrier (Japan), specialising in the research, development and manufacture of rotary compressors. Its products are widely used in household and commercial air conditioners, refrigerators, heat pumps and other fields, and are known for high energy efficiency, low noise and long life.
Case Details
1. High efficiency and energy saving
Adopting advanced inverter technology (e.g. DC Inverter), the COP (energy efficiency ratio) can reach 3.8W/W, which significantly reduces energy consumption.
Suitable for R22, R410A, R32 and other refrigerants to meet different environmental requirements.
2. Low noise design
Optimised rotor structure and noise reduction technology, operating noise is lower than the industry average.
3. High reliability
Adopting precision manufacturing process, such as double-cylinder inverter technology (e.g. ATQ650D48UNT3), to enhance the operation stability.
Passing international certifications such as CCC, TUV, UL, etc. to ensure global applicability.
4. Wide applicability
Covering domestic air-conditioners (1-3HP), commercial air-conditioners (5-20HP), heat pumps and refrigerating and freezing equipment.
Fields of Application
Domestic air-conditioning: e.g. KSN108D34UEZ3 (3.4KW) is suitable for small inverter air-conditioners.
Commercial refrigeration: e.g. PH480X3CS-4MU1 (48,000 BTU) for large refrigeration equipment.
Heat pump system: e.g. EKPM310D85UMTR supports R32 refrigerant and is suitable for heat pump water heaters.
Common Models:

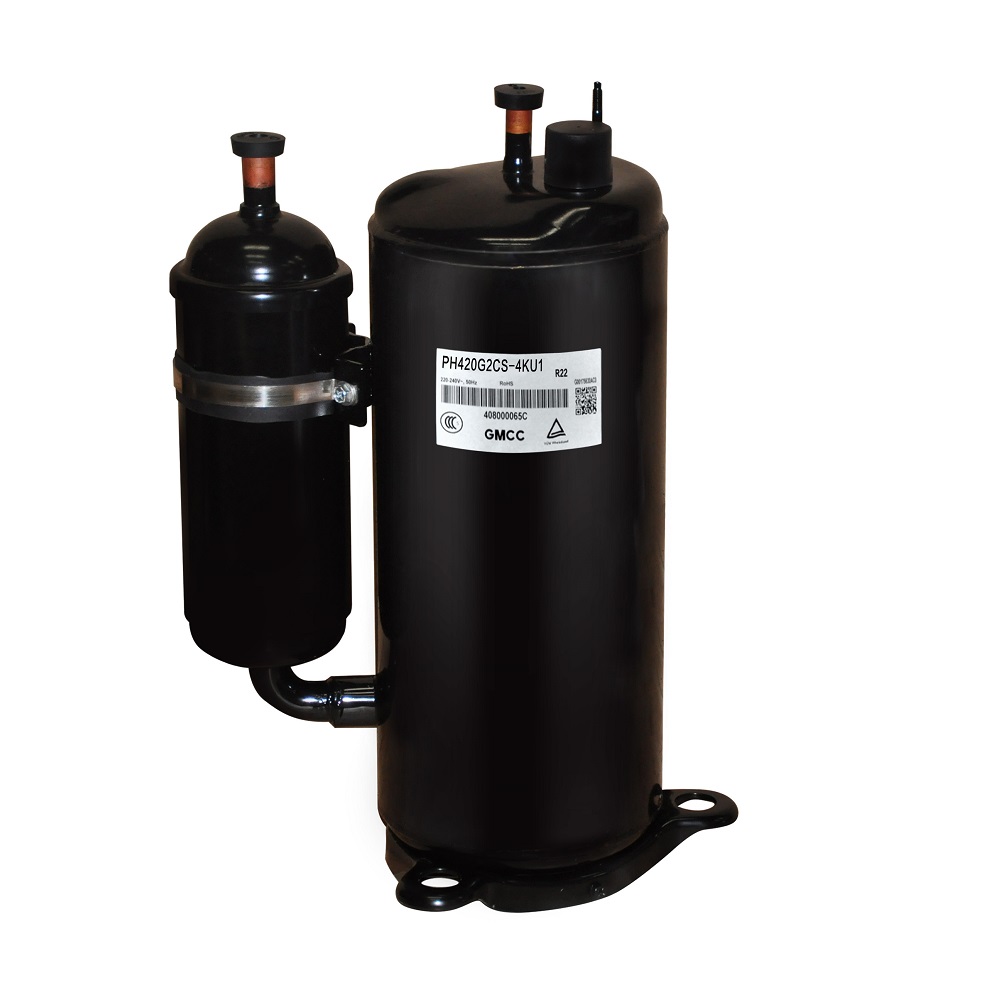

Model: PH420G2CS-4KU1
Type: hermetic rotary (rotor) compressor
Cooling capacity: 7,420W (test condition: ASH) / 7,555W (nominal)
Input power: 2,415W / 2,585W
Energy efficiency ratio (COP): 3.1 W/W
Displacement: 42.3 cm³/rev
Power supply: Single-phase 220-240V, 50Hz
Weight: Approx. 20kg (including lubricant)
Applicable refrigerant: R22
Applicable scenes:
Domestic and commercial air-conditioning (cooling and heating type), chiller, small central air-conditioning system .

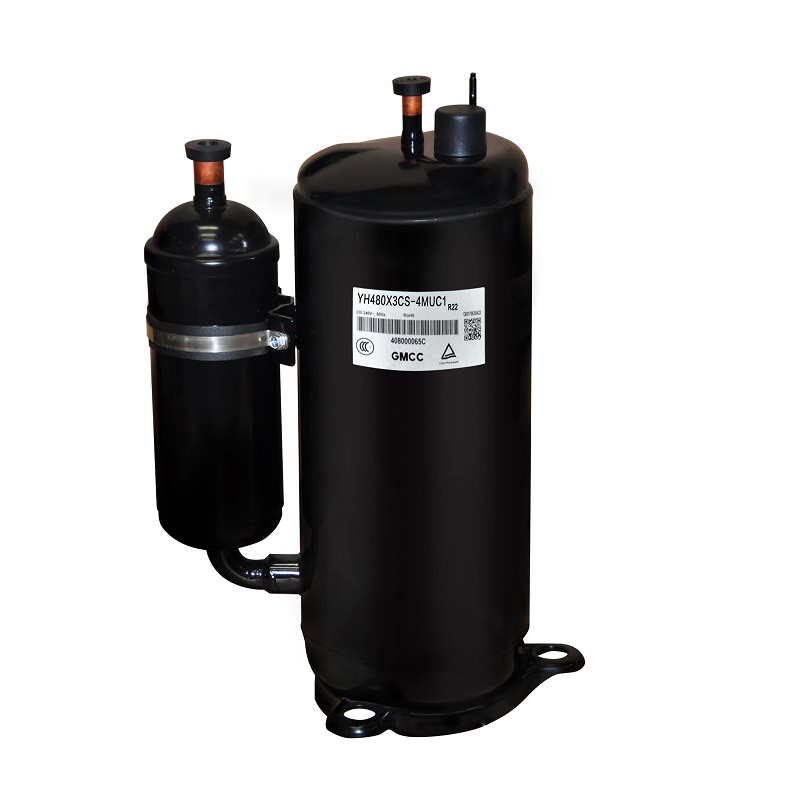

Model: YH480X3CS-4MUC1
Type: Rotary (Rotor) Compressor
Cooling capacity: 8,460W (nominal)
Input power: 2,730W
Energy efficiency ratio (COP): 3.1 W/W
Displacement: 47.9 cm³/rev
Power supply: AC380V, three-phase, 50Hz
Weight: Approx. 25.2kg (including lubricant)
Applicable refrigerant: R22
Applicable scenes:
Commercial air-conditioning systems: For small and medium-sized central air-conditioning units.
Industrial refrigeration equipment: Such as freezing and cold storage, cold cabinet.

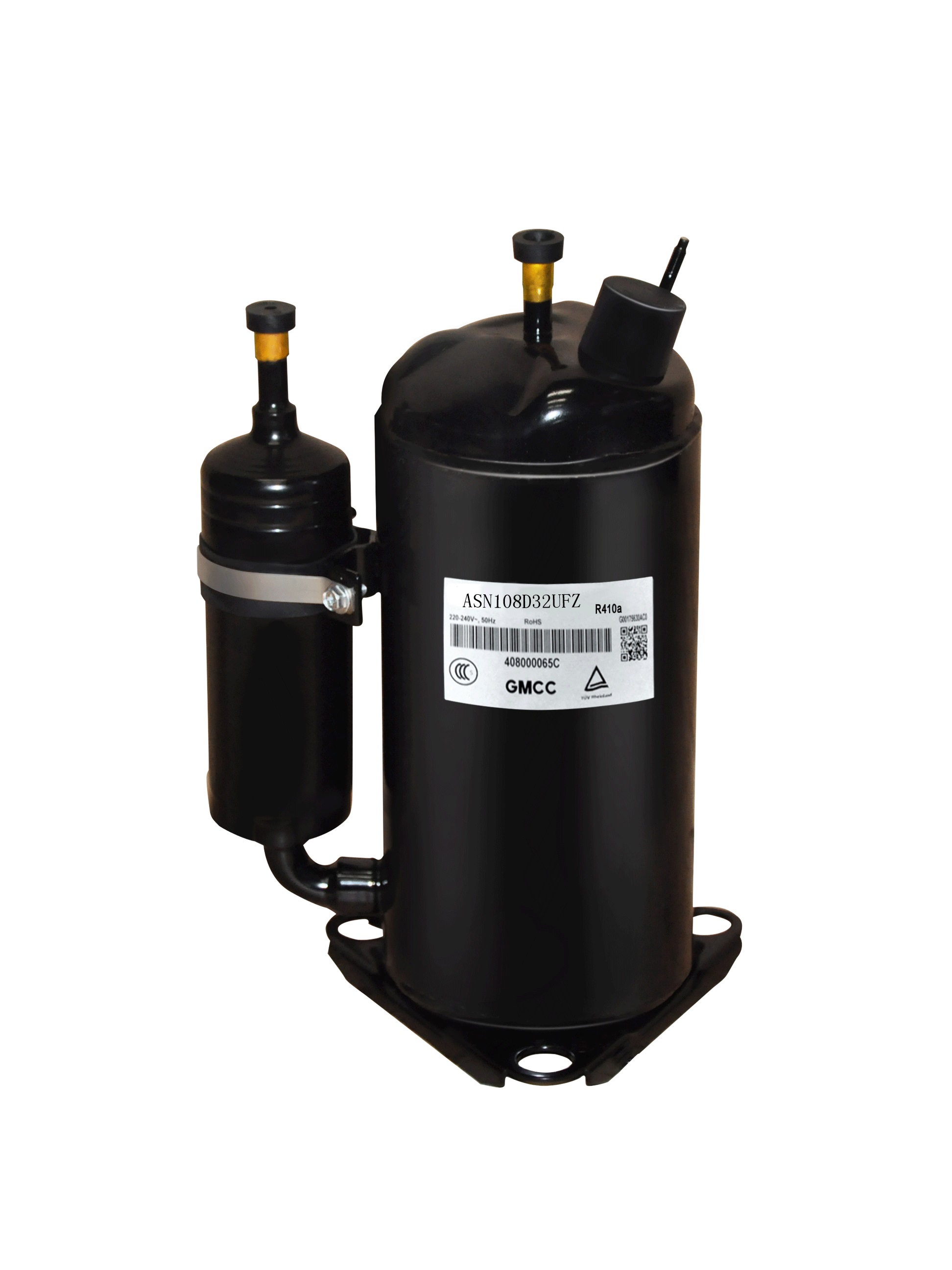

Model: ASN108D32UFZ
Type: Rotary (Rotor) Inverter Compressor
Cooling capacity: 3,260W (R410A refrigerant, tested condition: SEER60)
Energy efficiency ratio (COP): 3.95 W/W
Displacement: 10.8 cm³/rev
Power supply: DC inverter
Applicable refrigerant: R410A
Applicable scenes:
Domestic inverter air-conditioner: Applicable to 1.5 HP ~ 2 HP air-conditioning system.
Commercial air-conditioning units: Used for small and medium-sized central air-conditioning.

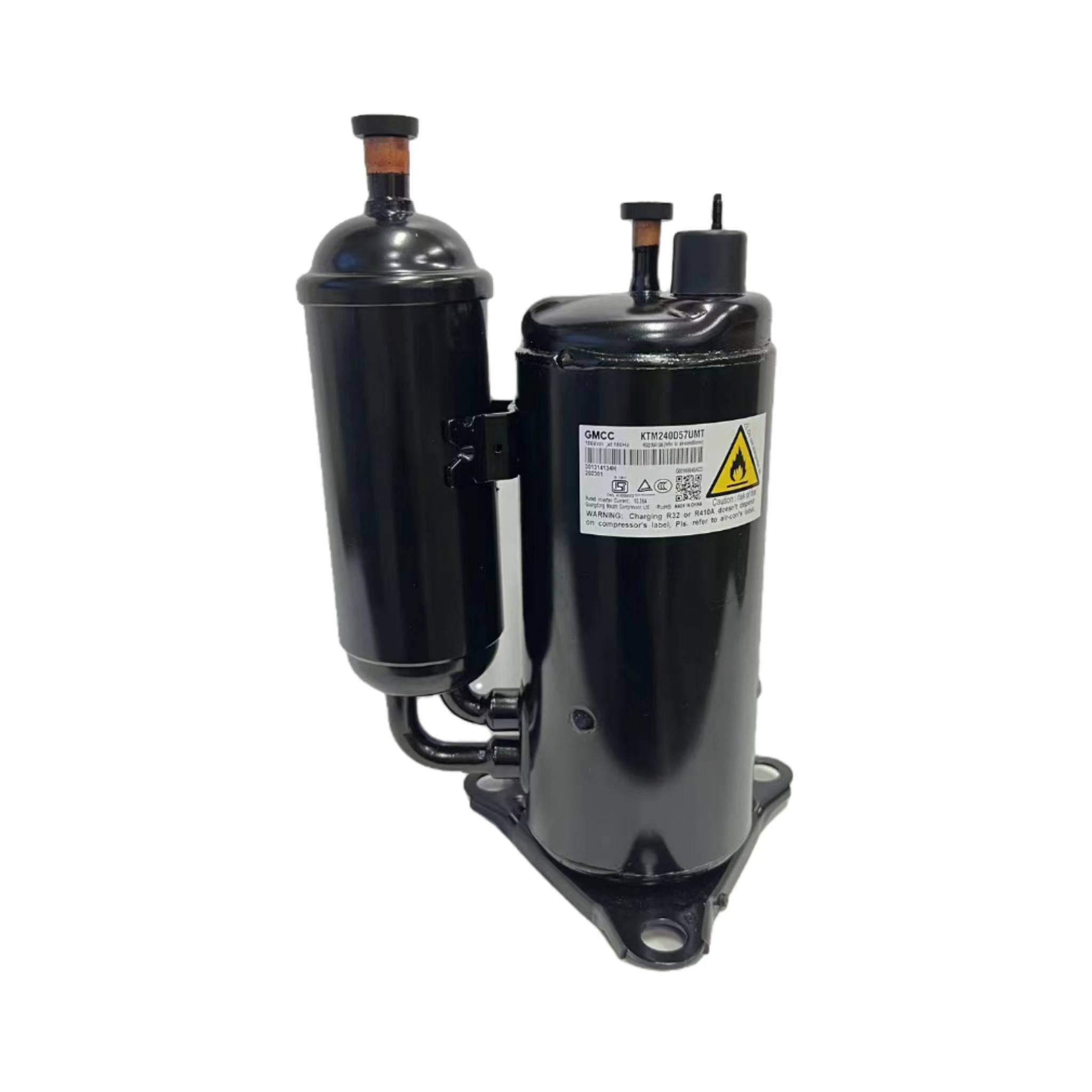

Model: KTM240D57UMT
Type: Rotary (Rotor) Inverter Compressors
Cooling capacity: 7,740W (R32, test condition: SEER60)
Energy efficiency ratio (COP): 3.8 W/W
Displacement: 24 cm³/rev
Power supply: DC inverter
Applicable refrigerant: R32 / R410A
Applicable scenes:
Domestic inverter air-conditioner: Applicable to 1.5 HP ~ 2 HP air-conditioning system.
Commercial air-conditioning units: Used for small and medium-sized central air-conditioning.
Model: KTM240D57UMT
