ZP Copeland Scroll compressors, for R410A, for comfort and process precision cooling applications. Whether used in stand-alone, tandem or trio configurations, the broad ZP Copeland Scroll line-up meets today’s market requirements with unmatched flexibility, efficiency and proven reliability. Their high efficiency helps to reduce operating costs.
Case Details
Features and Benefits: 1.Copeland qualified tandem and trio, configurations for superior seasonal efficiency.
2.Copeland Scroll axial and radial compliance for superior reliability and efficiency.
3.Extended 5K operating envelope suitable for heat pump applications.
4.Low TEWI (Total equivalent warming impact).
5.Wide scroll line-up for R410A.
6.Low sound and vibration level.
7.Low oil circulation rate.
Specific application scenarios for the Copeland scroll ZP series compressor include:1.Split units: In air-conditioning systems, the ZP series scroll compressors are commonly used in split air-conditioners, a design that allows for separate installation of the indoor unit and the outdoor unit, improving installation flexibility and space utilisation.
2.Rooftop units: Suitable for rooftop air-conditioning systems in commercial and industrial buildings, they can effectively utilise the space on top of the building and save indoor floor space.
3.Unitary units: In small commercial or residential air-conditioning systems, the ZP series scroll compressor can be used as the core component of the unitary air-conditioning unit to achieve centralised control and management.
4.Chillers: In large commercial and industrial refrigeration systems, ZP series scroll compressors can be used in chillers to provide cooling water to buildings for air conditioning and process cooling needs.
5.Ice machines: The YM86A1G model scroll compressor of the INVENT brand is clearly labelled for use in ice machine scenarios, which indicates that the ZP series scroll compressors are also suitable for use in ice machines for the production of different types of ice, such as flake, tube or slab ice.

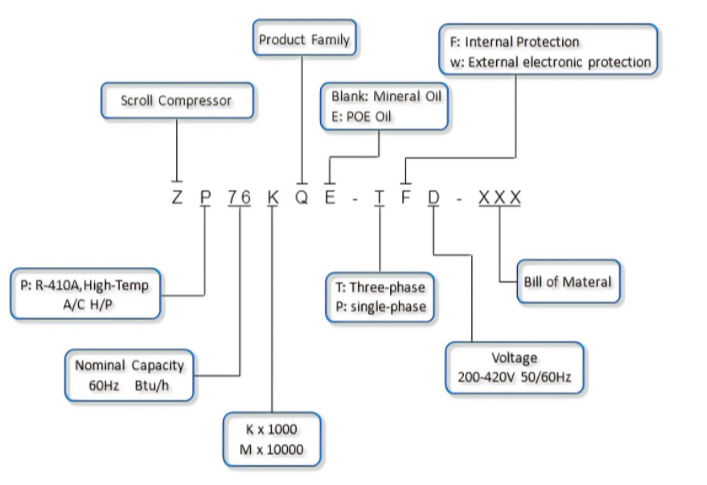

Naming Rules of Copeland Scroll ZP Series Compressors:
Example1ZPJ83KCE-TFD-496:1.Refrigerant: R410A2.Electrical
:3ph3.Voltage
:380v-420v/3ph/50hz - 460v/3ph/60hz4.Net Weight

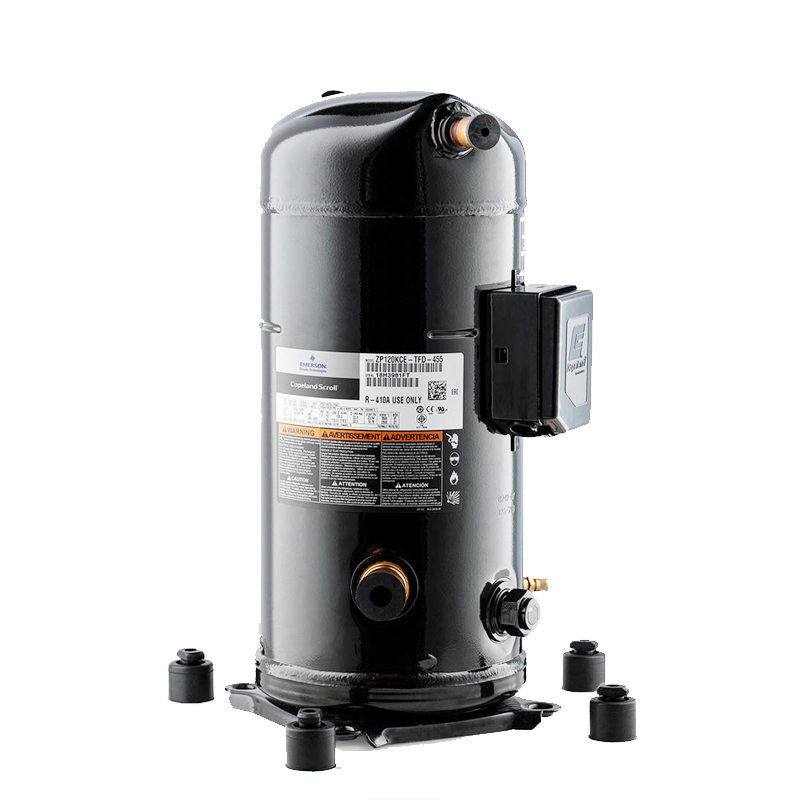

: 49kg5. Application: AC,drier,refrigeration,chiller,etc.Key Features1.Low Energy Consumption:Through optimised design, the ZP120KCE-TFD-455 compressor is able to ensure performance while reducing energy consumption and saving running costs.
2.Low Noise and Low Vibration Smooth Sound Spectrum:This compressor adopts advanced noise reduction technology, which makes the sound smoother during operation and reduces noise pollution.

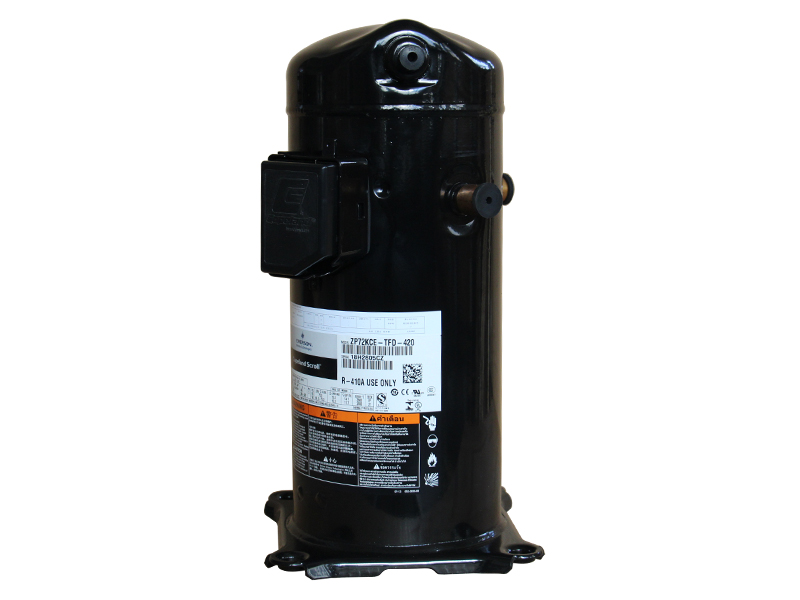

ZP72KCE-TFD-420:
1.Refrigerant:R410A
2.Cooling capacity:17400w
3.Input power:5250w
4.Power V/d/Hz:220V-3Ph-60Hz 3/380/50HZ
Advantages of the Copeland compressor ZP72KCE-TFD-420 include:
1.Wide capacity range: Copeland Digital Scroll's 10 per cent to 100 per cent operating capacity range is the world's Yes, the larger capacity range allows the compressor to be turned on-stop less often, thus increasing system efficiency. Moreover, it enables a continuous spectrum of capacity output, ensuring tight control of room temperature. This is an improvement over inverter technology, which can only modulate the capacity output hierarchically.
2.High Seasonal Energy Efficiency: For modulating systems, the Seasonal Energy Efficiency Ratio (SEER) is the standard measure of energy savings for systems operating throughout the year, and Copeland Digital Scroll technology has been evaluated according to the JIS & ARI standards, and has a good Seasonal Energy Efficiency Ratio as it reduces energy consumption by 40 per cent throughout the year.
