Bitzer Semi-Hermetic Compressor

Bitzer is a well known manufacturer of Semi-Hermetic Compressors for a wide range of applications in refrigeration and air conditioning systems. Semi-hermetic compressor compressors integrate the motor and compressor in a single shell, but unlike the fully hermetic type, they have a removable top cover that allows maintenance or repair of the internal components.

Case Details

Types of Bitzer Semi-Hermetic Compressor

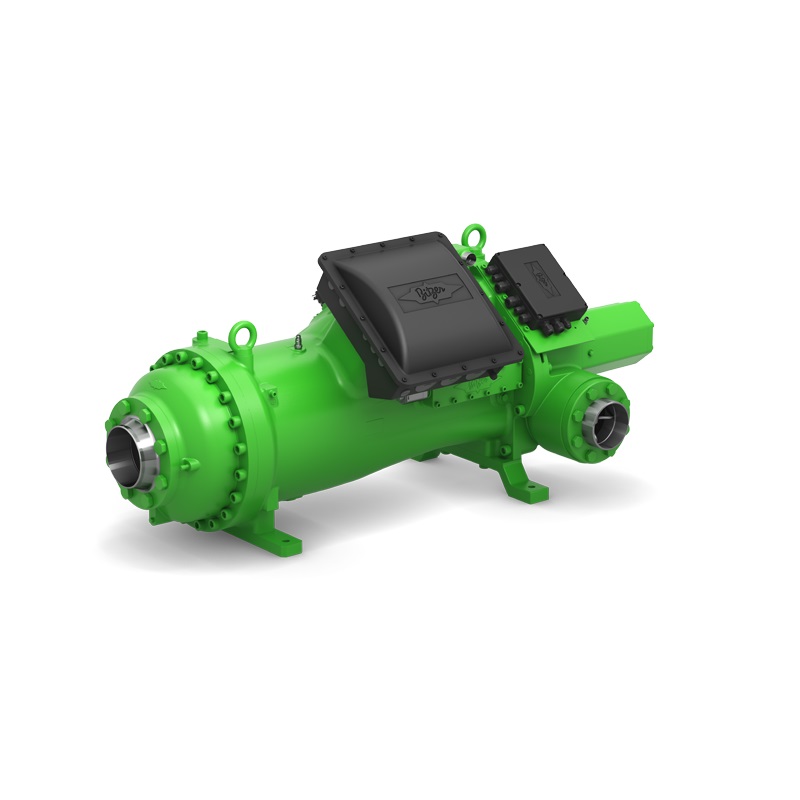

1. Semi-hermetic screw compressors (CS series)
- Features:
- Integrated oil separator and suction cooling motor, compact structure.
- Supports power adjustment by mechanical slider or external inverter, and is suitable for a wide range of Refrigerants (HFC, HFO, HC, etc.).
- Wide range of exhaust capacities (137-1120 m³/h at 50Hz) covering 21 models.
- Fields of application:
- Air conditioner coolers, process coolers, heat pumps (space heating/industrial heat pumps).

2. Semi-hermetic piston compressors
- Features:
- Medium and high temperature type (evaporating temperature up to 12.5°C) and low temperature type (evaporating temperature up to -40°C for single stage and -70°C for double stage).
- Supports a variety of refrigerants (R22, R404A, R507A, etc.), flexible energy regulation (4 cylinders 50%-100%, 6 cylinders 33%-100%).
- Built-in PTC sensor to monitor motor temperature, optional unloading starting device to reduce current impact.

Common models and technical parameters
1. Screw compressor (CS series)
- Representative model:
- CSW9573-180(Y)
- Displacement: 700 m³/h at 50Hz, 845 m³/h at 60Hz.
- Refrigerant: R134a, R404A, R407C, R1234yf, etc.

2. Piston compressor
- Representative Model:
- Two-stage 30HP compressor
- Displacement: 101.10 m³/h at 50Hz, 122.02 m³/h at 60Hz.
- Refrigerant: R404A/R507A (lubricant BSE32), R22 (lubricant B5.2).
- Applications: ultra-low temperature cold storage, food/pharmaceutical cold storage equipment, etc.

Technical Parameters
- Refrigerant compatibility:
- Screw compressor: HFC, HFO, HC, etc. (e.g. R290, R1270).
- Piston compressor: R22, R404A, R507A, R134a, R407C, etc.

Application Scenarios
-Screw compressor:
- Industrial heat pumps, central air conditioning, high/low temperature process cooling.
- Piston compressor:
- Cold storage (food, medicine), refrigerated trucks, cryogenic laboratory equipment.

Reference Specification：
