Samsung is a globally recognized large-scale conglomerate with a wide range of influence in various fields such as electronics and electrical appliances.
Samsung started to develop and produce compressors in the 1970s, and has more than 30 years of experience in compressor development and use.
Samsung Airlines developed the TURBOMASTER centrifugal compressor in 1997 and entered the Chinese market in 1999.
Main Types
1. Samsung Centrifugal Compressor
Working principle: The impeller is driven by electric motor to rotate at high speed, and the centrifugal force is utilized to compress the gas. The gas undergoes three stages of suction, compression and discharge, and the pressure and temperature are gradually increased, and the high-pressure gas is finally discharged.
Characteristics: High efficiency and energy saving (IPLV value of 10.00), compact size, low noise, suitable for large central air conditioning and industrial refrigeration systems.
Common Models:
1.TM1250
- Discharge flow rate: 180m³/min
- Discharge pressure: 1.0MPa (G)
- Shaft power: 1058.5kW
- Motor rated power: 1111kW (1490HP)
- Main motor power supply: AC 6KV±5%, 3Ph, 50±1.5%Hz
- Equipment flow rate: 180m³/Min
- Suction air pressure: 1.003BarA
2.SM4000
- Pressure: 6kg
- Flow rate: 5400 - 6600 standard cubic meters
- Voltage: 10kV

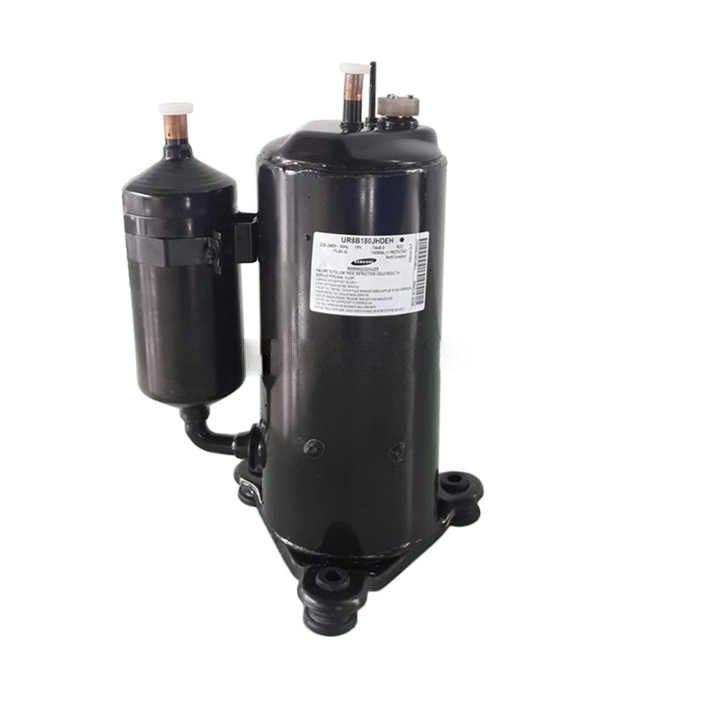

2. Samsung Rotary Compressor
Working principle: The motor drives the rotor to rotate in the cylinder, and a number of working chambers are formed between the rotor and the cylinder wall. With the rotation of the rotor, the volume of the working chamber changes to realize the inhalation, compression and discharge of refrigerant.
Characteristics: The rotating rotor is used to compress the refrigerant, which has the advantages of compact structure, small volume and light weight. Smooth running, less vibration and noise, suitable for household air conditioning, small commercial air conditioning and other fields.
Common Models:
1.UR9CJ1037D
- Displacement: 6.6cc/rev
- Cooling capacity: 3640Btu/h (approx. 1067W)
- Energy efficiency ratio (COP): 9.3Btu/Wh (about 2.73W/W)
- Input power: 391W
- Fuel Capacity: 210cc
- Net weight: 6.9kg
2.UR5A215DN
- Displacement: 36.2cc/rev
- Cooling Capacity: 21800Btu/h (approx. 6389W)
- Energy efficiency ratio (COP): 11.2Btu/Wh (approx. 3.28W/W)
- Input power: 1945W
- Fuel Capacity: 750cc
- Net weight: 22.0kg
3. Samsung Scroll Compressor
Working principle: Composed of a fixed scroll disk and a rotating scroll disk, the two scroll disks engage with each other to form a number of crescent-shaped sealing space. When the rotating scroll disk rotates around the fixed scroll disk, the volume of the sealing space gradually decreases, thus compressing the refrigerant.
Characteristics: The use of scroll disk mutual meshing to compress the refrigerant, with high efficiency, energy saving, low noise and other advantages. Widely used in large air-conditioning systems, commercial refrigeration equipment and other fields.
Common Models:
1.DS-GB052FAVB
Displacement:52.0cc/rev
Refrigeration capacity:58,500BTU/h
Power:17,145W
Energy Efficiency:11.2BTU/Wh(3.28W/W)
Input Power:5,223W
Fuel Capacity:1,100cc
Net Weight:31.8kg
2.DS-GB070FAVA
Displacement 70.0cc/rev
Cooling capacity 77,700BTU/h
Power 22,772W
Energy efficiency ratio 11.5 BTU/Wh (3.37W/W)
Input power 6,757W
Oil filling capacity 1,100cc
Net weight 36.7kg
To learn more about Samsung Compressor.
