Founded in 2011, Suzhou Inventec Scroll Technology Co. is headquartered in Changshu, Jiangsu Province. It is a high-tech enterprise specialising in the research, development, manufacture and sales of scroll compressors. Through its own technological innovation, it has developed and launched high energy-efficiency bi-directional flexible scroll refrigeration compressors in China, and is one of the early professional manufacturers to achieve mass production of scroll compressors in China.
Characteristics: 1. High efficiency and energy saving: Adoption of jet enthalpy technology (e.g. YF-V series) improves cooling capacity by 40% and energy efficiency by 30% under low temperature working conditions. 2. Environmentally friendly refrigerant adaptation: Supporting R290, R454B, R32 and other low GWP environmentally friendly refrigerant, to meet the demand for green refrigeration. 3. Intelligent control: External protection module integrates phase failure, overheating and other protection functions, and supports fault storage and diagnosis. 4. Compact design: Small volume, light weight, suitable for complex installation environment.
Invotech Scroll Compressors Working principle The principle is to use the dynamic scroll disc and static scroll disc meshing with each other, forming a number of crescent-shaped closed chamber. -With the dynamic scroll disc around the static scroll disc to do rotational movement, the volume of the chamber is constantly changing. -In the suction process, the gas enters the chamber from the suction port; in the compression process, the chamber volume gradually decreases and the gas is compressed. -In the exhaust process, the compressed high temperature and high pressure gas is discharged from the exhaust port, thus realising the compression of refrigerant gas.

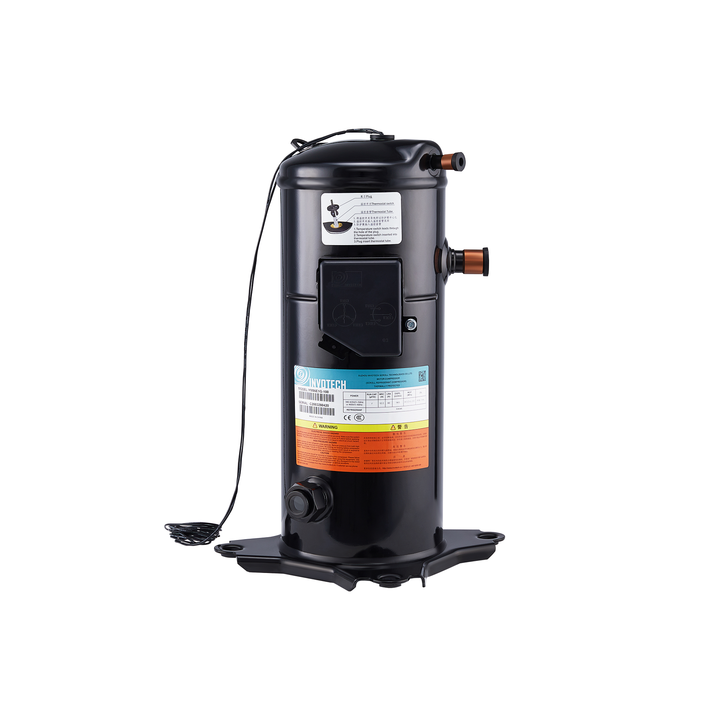

Common Models YW240J1 - 100: -12HP high temperature drying heat pump compressor, -Power supply:380 - 420V/50HZ -Cooling capacity:29220W -Displacement:189.1 cc/rev.
