Company Profile
- Zhejiang Boyard Compressor Co., Ltd. was established in 2006, which specializes in the research, development, production and sales of special air-conditioning compressors, medium and low temperature refrigeration compressors, condensing units and other products.
- Boyard's products include a wide range of compressors for a variety of applications such as RVs, trucks, refrigerated trucks, commercial freezers and more.
- The company's core competitiveness lies in technological innovation and green concept.

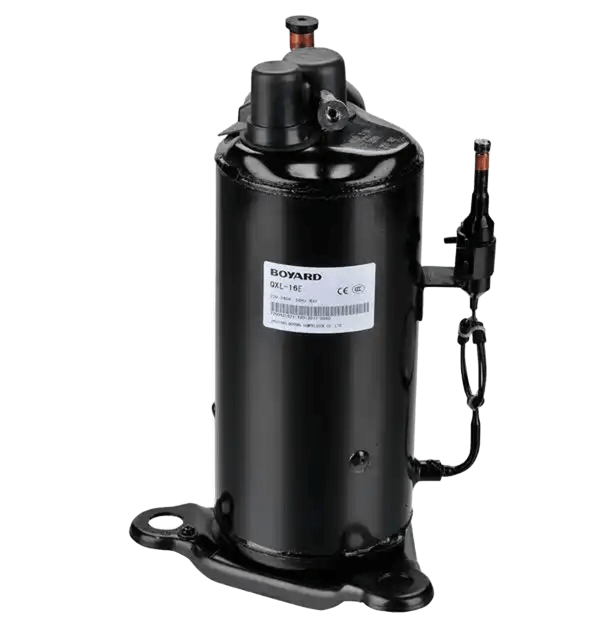

Boyard Rotary Compressor:
- Principle: Adopting the rolling rotor type or slide-vane type structure, the gas is compressed by rotating the eccentric wheel. For example, a slide-type compressor compresses gas gradually by rotating the rotor eccentrically, with the slide pieces forming multiple independent chambers against the cylinder wall under the action of centrifugal force.
- Characteristics: Small size, light weight, smooth running, high efficiency and low noise.
- Applications: Widely used in household air conditioning, commercial air conditioning, refrigeration and freezing equipment and other fields.

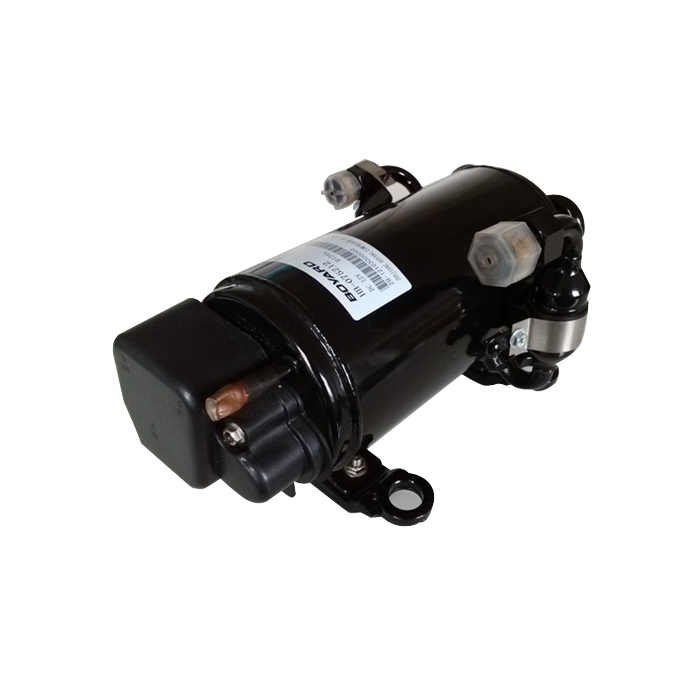

Boyard Horizontal Compressor:
- Characteristics: The horizontal arrangement of the cylinder centerline, good stability, easy to install.
- Applications: Widely used in the field of transport refrigeration, such as vans, refrigerated trucks, caravans, etc., can provide reliable refrigeration protection for the goods in the transportation process.
Application Fields of Boyard Compressor
1. Commercial Refrigeration and Freezing: Such as cold storage condensing unit (-40℃ refrigeration capacity up to 1423W).
2. Mobile air conditioning and special vehicles: Including RVs, trucks, refrigerated trucks, etc., supporting mobile air conditioning systems with DC 12V/24V power supply.
3. Ships and construction machinery: Suitable for high humidity, high vibration environment, to meet the needs of special operations.
4. Home appliances and small refrigeration equipment: Such as dehumidifiers, convenience store freezers, etc., using low-cost rotary compressors.
Common Models
1. CDXL series condensing unit
- Model: CDXL-180KA (2.5HP)
- Input power: 1800W
- Refrigerant: R404A (max. charge 3.0kg)
- Operating current: 8.18A
- Size: 850mm×345mm×580mm
- Application: Commercial cold storage, low temperature refrigeration equipment.
2. Vehicle-mounted mobile air-conditioning compressor
- Model: BOYARD 12V/24V DC rotary compressor
- Cooling capacity: 3740 BTU/h
- Input power: 373W
- Refrigerant: R134a
- Dimension: 163mm×120mm×267mm
- Application: Automobile mobile air conditioner, RV refrigeration system.
To learn more about Boyard Compressor.
