Danfoss is one of the world's leading manufacturers of scroll compressors. The main principle of Danfoss scroll compressors is to use the relative rotational motion of the dynamic and static scroll teeth to form a continuous change in the closed dead volume to achieve the purpose of gas compression, which is widely used in air conditioning, heat pumps and refrigeration systems. Danfoss scroll compressors are renowned for their high efficiency, reliability and environmental friendliness.
Case Details
Compact and lightweight: Danfoss compressors are known for their small size and light weight, and their optimised design makes them compact and can be installed directly inside the equipment, reducing installation costs and saving time and effort.
Energy efficient: The use of high energy efficiency rotary compressors and motors, compared with ordinary compressors can save more than 10% of electricity.
High efficiency ratio: The highest COP (coefficient of performance) of scroll compressors can reach 3.5, due to its continuous compression process, small heat transfer between suction and discharge, no residual gap volume, high efficiency in the application.
Wide range of applications: They can be used in central air conditioning, air cooling, heat pumps and parallel systems, etc. They are also widely used in commercial and large commercial air conditioning for systems using R22, R407C and R134a as refrigerants.
Optimised part-load efficiency: Danfoss scroll compressors with Danfoss Intermediate Discharge Valve (IDV) optimise part-load efficiency, are backward compatible and minimise redesign costs.

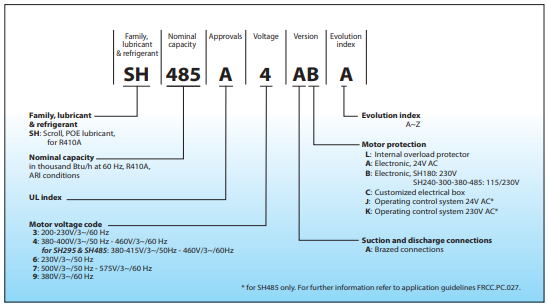

Naming rules of Danfoss scroll compressors
The main series of Danfoss scroll compressors and their common models
Main Series
1.MLZ Series
Common Model:
(1)MLZ096T5LH9
Applications: Air conditioning and light commercial refrigeration.
Refrigerant: R410A
Features:
Adopting high-efficiency scroll technology to optimise energy efficiency ratio.
Compact and easy to install in limited space.
(2)MLZ128T5LH9
Application: Larger air conditioning or light commercial refrigeration systems.
Refrigerant: R410A.
Features:
Built-in protection features such as overheat protection and high/low pressure protection ensure safe system operation.
Low noise design, ideal for applications requiring a quiet environment.
(3)MLZ160T5LH9
Application: Large air conditioning systems or commercial refrigeration equipment requiring higher cooling capacity.
Refrigerant: R410A.
Features:
Emphasis on high energy efficiency ratio and reliability with reduced maintenance requirements.
2.MLM Series
Applications: For air conditioning and commercial refrigeration applications.
Common Models:
(1)MLM021T5LP9: R407C or R410A, single phase power supply for smaller applications.
(2)MLM038T5LC9: R407C or R410A but with higher cooling capacity, suitable for scenarios requiring higher cooling capacity.

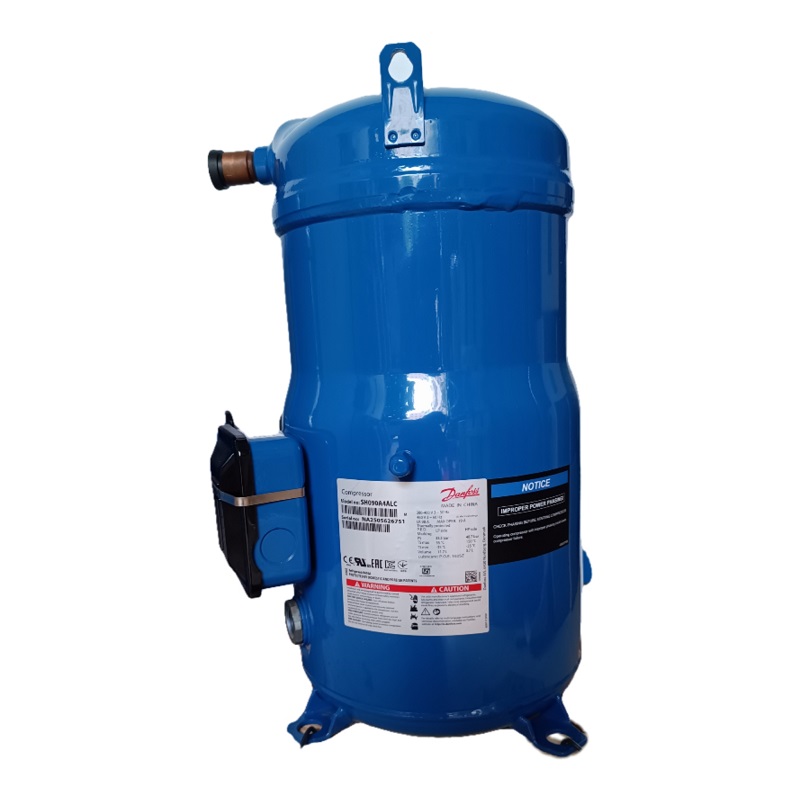

3.SH Series
Applications: Designed for heat pumps and air conditioning systems, with a wide operating range to adapt to different climatic conditions.
Common models:
(1)SH110: High performance heat pump compressor for domestic and light commercial heat pump systems.
(2)SH160: Higher cooling/heating capacity for medium to large commercial or industrial heat pump applications.
4.ZH Series
Applications: For industrial refrigeration and large commercial air conditioning systems.
Common models:
(1)ZH100: Providing high cooling capacity, suitable for large scale refrigeration needs such as low temperature storage in industries such as food processing and warehousing logistics.
(2)ZH150: Further increased cooling capacity for more demanding industrial refrigeration requirements.
