Copeland ZH Series Compressors have been under development at Emerson Climate Technologies since 1979. It is the most efficient and durable compressor Emerson Climate Technologies has ever developed for air conditioning, refrigeration and heating applications. The compressors are scroll compressors designed for low and medium temperature refrigeration applications. These compressors are popular for their high efficiency, reliability and suitability for environmentally friendly refrigerants.
Case Details
Features and Benefits
Copeland Scroll axial and radial compliance for high reliability.
High efficiency and increased heating capacity.
High water temperature for all applications.
Low sound and low vibration level.
Tandem combination for superior seasonal efficiency.
Enhanced vapor injection technology for best seasonal efficiency.
Main application scenarios:
Heating Systems: These compressors provide efficient heating performance for the heating needs of homes and commercial buildings.
Industrial refrigeration: They can be used in a wide range of industrial applications such as food and pharmaceuticals, oil and power, environmental monitoring, etc., to ensure temperature control in the production process.
Air conditioning systems: these compressors provide precise temperature control and improve the overall performance of the system.
Automotive Manufacturing: Copeland ZH series compressors can be used in a variety of cooling and heating applications on production lines to ensure smooth production processes.
Railway: Copeland ZH series compressors can be used in train air conditioning systems to provide a comfortable travelling environment.
Food and Pharmaceutical: Copeland ZH compressors are used in refrigeration, freezing and heating processes to ensure product quality and safety.

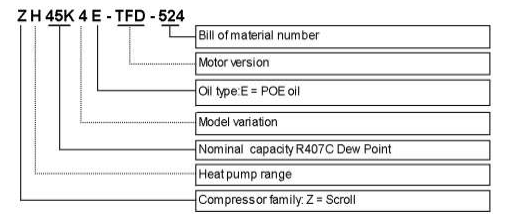

Naming rules of Copeland ZH series compressors:
Example1

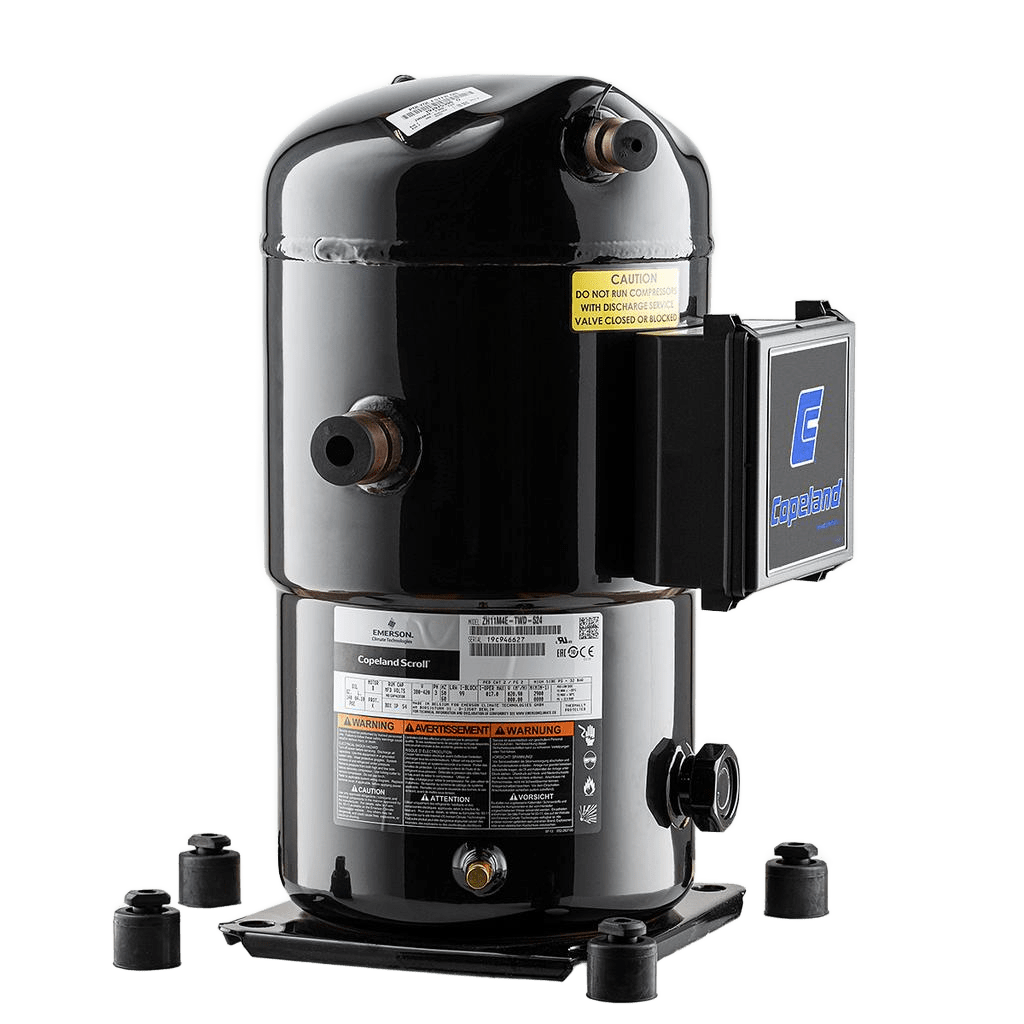

ZH11M4E-TWD-524
Applications:Radiator,Underfloor
Compatible Refrigerants:R134a,R407C
-
Voltage:380-420 V at 50 Hz, 460 V at 60 Hz
Power Input [kW]:8.82
Heating Capacity [kW]:39.70
The compressors for heating are designed for optimum operation and reliability of heat pumps connected to hydronic distribution systems for space heating and/or for the production of domestic hot water. These applications require reaching condensing temperatures as high as 65°C with high efficiency and reliability over a broad operating range.
Example2ZH15K4E-TFD-524Power: 2HP
Delivery volume: 5.9 m3/h
Cooling capacity: 2.93 kW
Evaporation temperature: -25 to +15°C
Oil filling: 1.36 litres
Net weight: 23 kg
Noise level: 60 dB - 1 m
Rotalock connections: 3/4" x 1/2"
Mains voltage: 380-420V/3F/50Hz
The Copeland ZH15K4E-TFD 524 scroll compressor offers an efficient and reliable solution for heat pump applications. The ester oil filling and internal overcurrent circuit breaker make it particularly low-maintenance and durable. The use of rubber vibration dampers ensures low-noise operation and optimum performance. With a high energy efficiency coefficient and a powerful heating output of 7.2 kW, this compressor is the ideal choice for demanding heating systems.
-
