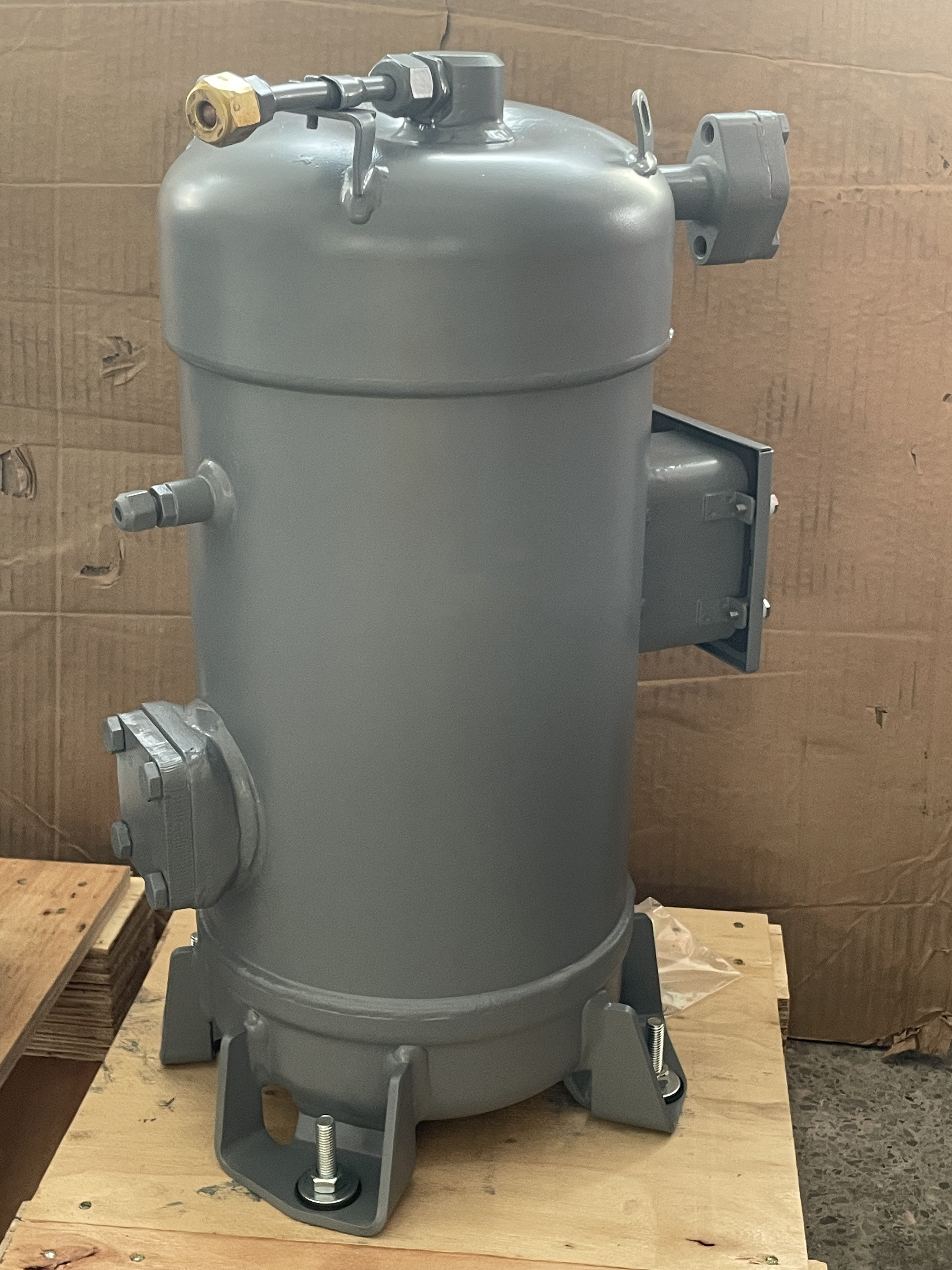

Daikin JT224DCNYR@S Scroll Compressor: Rugged Core for Reefer & Marine AC

Most HVAC engineers associate Daikin scroll compressors with stationary building air conditioning. But JT224DCNYR@S is a custom model built for ocean reefer containers and marine cabin AC. A compressor breakdown during sea transport can cause heavy cargo losses for pharmaceuticals, seafood and fruits, making this 7.5HP unit a popular replacement spare part.

Key Specs

• Type: Hermetic scroll
• Power: 7.5HP
• Voltage: 3Ph 380–415V 50Hz / 400–460V 60Hz
• Displacement:17.05 m³/h, nominal cooling capacity:14.60kW (at rated condition)
• Refrigerant: Factory specified for R134a. Conversion to R404A/R407C is NOT factory-approved. R22 is prohibited.
• Weight (with oil): ~74kg, factory oil charge:1.8L Shaft-seal-free design cuts refrigerant leakage. It comes with built-in motor overheat protection and discharge temperature monitoring, working together with system high/low pressure safety controls to withstand wide temperature swings and power fluctuations at sea. The scroll wraps adopt flexible meshing; there is no rigid metal contact under normal running conditions to reduce vibration.

Why Choose It for Marine & Reefer?

Standard commercial scrolls are designed for stable power and low vibration indoors. Reefer containers suffer continuous hull vibration, unstable generator power and salt-laden humid air. Real case: A customer replaced JT224DCNYR@S with same HP land scroll compressor. It failed within 3 months at sea and led to cargo loss. Similar cooling capacity does not equal marine-grade reliability.

Maintenance Tips

1. Use Daikin specified refrigeration oil and check oil acidity regularly.
2. Follow pre-start procedure after long shutdown to prevent liquid slugging.
3. Match full model suffix for replacement; @S variants have different oil separators and dampers.
4. Run insulation resistance test before installation, moisture is the main cause of motor burnout.

Sourcing Warning

Available as genuine new or rebuilt used compressors. Counterfeits usually omit the @S suffix on nameplates with poor painting. Rebuilt units require full inspection before long ocean transit.

JT224DCNYR@S shines not with top lab COP, but consistent reliability under rough mobile conditions. It is a proven 7.5HP scroll spare for reefer maintenance and marine refrigeration projects.
