Carrier 06DR3370DA3650: Why Carlyle 06DR Semi-Hermetic Compressors Remain Popular For Retrofit Chiller Projects

📌 Introduction

In the HVAC&R industry, equipment retrofit remains an ongoing technical undertaking. Among the various solutions available, the Carrier/Carlyle 06DR series semi-hermetic compressor—particularly the classic model 06DR3370DA3650—continues to hold an irreplaceable position in the market.

1️⃣ Semi-Hermetic Cast Housing: Dual Assurance of Seal Integrity and Serviceability

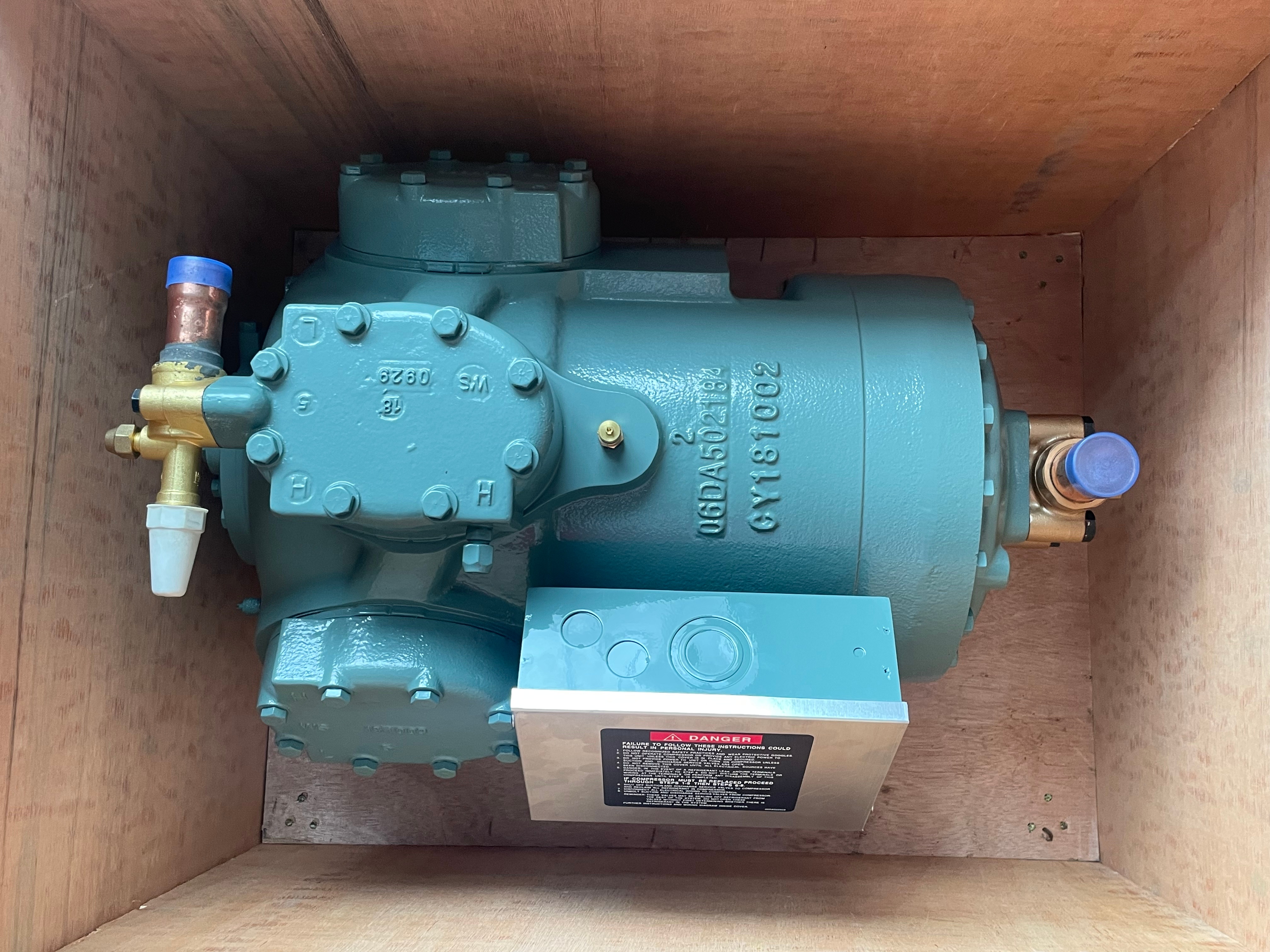

The 06DR series employs a semi-hermetic design, in which the motor and compressor are enclosed within a single cast iron housing while retaining removable end covers for on-site service access.

Advantage	Description
Superior sealing performance	Eliminates the chronic technical challenge of shaft seal leakage inherent in open-type compressors; offers distinct compatibility advantages for systems utilizing HFC/HFO class refrigerants (which demand tighter leakage control).
Excellent maintainability	Valve plate wear or motor winding burnouts can be repaired on-site or at an authorized service facility without complete unit replacement; effectively reduces retrofit costs and minimizes system downtime.

2️⃣ Broad-Spectrum Refrigerant Compatibility

As R22 is being progressively phased out, various alternative refrigerants impose different requirements on sealing materials and lubrication systems. The 06DR series was designed with a wide application spectrum.

Compatible refrigerants include:

• ✅ Traditional: R22, R12

• ✅ HFCs: R134a, R404A, R507

• ✅ Low-GWP: R407F and others

Retrofit advantage: When executing refrigerant conversion, these compressors require no replacement of sealing components—only a change to compatible lubricating oil (e.g., POE ester oil) and recalibration of the expansion valve—significantly reducing system conversion complexity.

3️⃣ Standardized Interface Dimensions

The compatibility of new compressor mounting with existing bases and the consistency of piping connections are critical factors affecting retrofit construction efficiency.

For the 06DR3370DA3650 (6-cylinder series):

Parameter	Specification
Suction line size	1-3/8 inches
Discharge line size	7/8 inches
Foot mounting holes	Industry-standard positions

Retrofit advantage: Replacement typically requires no pipe re-fabrication and minimal welding work, effectively controlling labor costs and construction risks.

4️⃣ Enhanced Lubrication System

Chillers predominantly operate in medium- to high-evaporating-temperature ranges, placing significant demands on the compressor lubrication system.

Key features of the 06DR series lubrication system:

5️⃣ Parts Availability and Lifecycle Maintenance Economy

Given the substantial installed base of the 06DR series, the aftermarket support is robust and well-established.

Supply chain advantages:

• 🔧 OEM parts – Continuously supplied by manufacturer

• 🔧 Third-party alternatives – Brands like CMP offer high-quality valve plates, piston rings, and motor coils

• 🔧 Secondary market – Strong liquidity ensures emergency replacement parts are readily available

Cost benefit: Even in the event of major mechanical failures, repair costs remain significantly lower than complete unit replacement.

✅ Conclusion

In chiller retrofit projects, the core value proposition of the Carlyle 06DR series lies in its technical certainty.

While it may not incorporate cutting-edge technologies such as variable frequency drive, the 06DR series remains a thoroughly validated and dependable technical option for large-chiller life-extension retrofits.
